TR-D8181IR3 v7 3.6
صوتي
audio in/out 1/1 / built-in microphoneمجال حركي واسع
real WDR (120 dB)دقة الكاميرات
3840x2160عامل الشكل
كرويةResolution
8MPدقة إخراج الفيديو القصوى
3840x2160مستشعر الصورة
1/2.7" CMOSمعدل البت (ميغا بايت / ثانية)
up to 16Mbpsمزود الطاقة
PoE (802.3af) / 12V DCعدسة
3.6الوزن الصافي
0.370 / 0.450الحساسية
0.006Lux (F1.6)التخزين المحلي
MicroSD up to 512GBحماية الدخول
IP67IR
Yesمادة القضية
Metalالحماية من الصواعق
TVS 2000VPower PoE
5Wأبعاد
Ø103.5 x 82.4استهلاك الطاقة
DC: 4W PoE: 5Wدرجة حرارة العمل
-40°C … +60°Cالوضع النهاري/الليلي
الميكانيكي يرفلترField of view
H91.5°, V46.1°Class PoE
802.3af/atفيديو كمبرس
Н.265+ / Н.265 / H.264+ / H.264

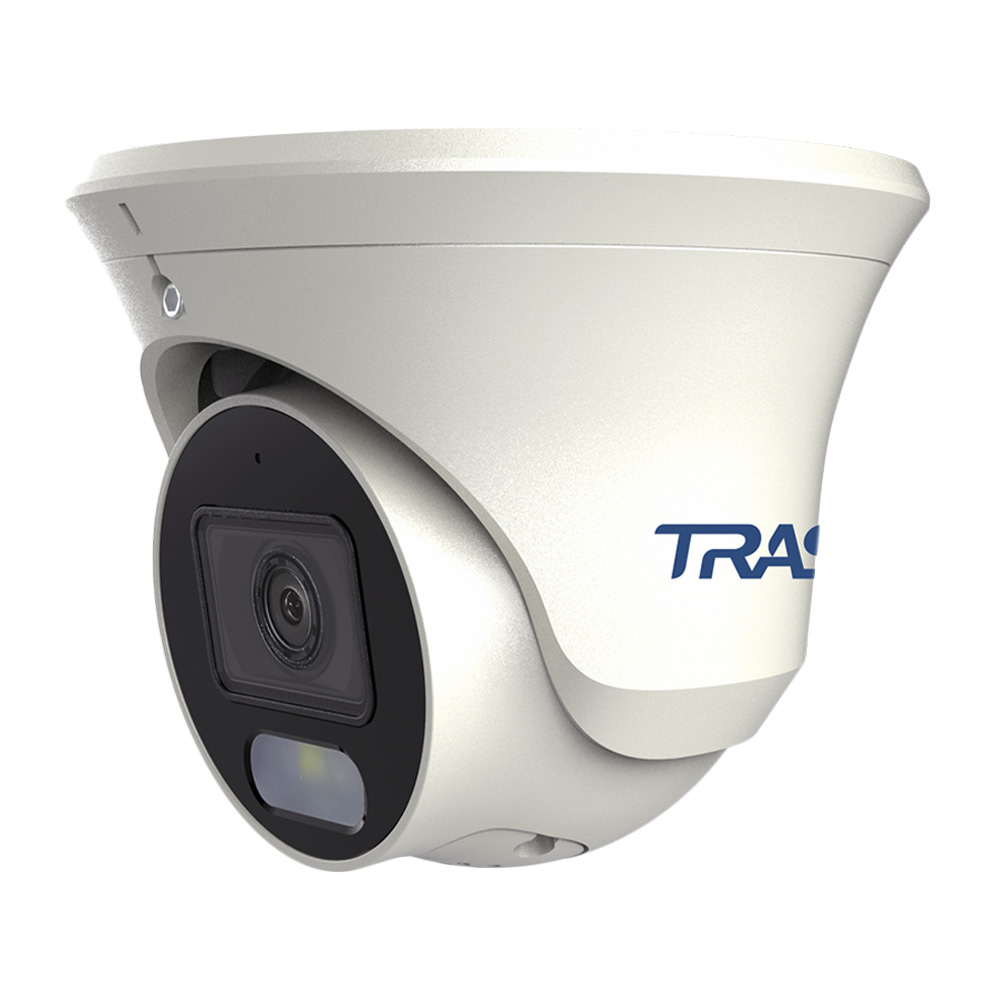

TRASSIR TR-D8181IR3 v7 3.6 is an outdoor spherical camera designed for 24/7 surveillance. Equipped with a 1/2.7" CMOS sensor, the camera delivers detailed images at a maximum resolution of 8 MP (3840 × 2160). The camera features a 3.6 mm fixed-focal-length lens. 120 dB WDR and 3D DNR help maintain high-quality video in challenging lighting conditions, while the mechanical IR filter and sensitivity of 0.006 lux (F1.6) enhance low-light and nighttime surveillance. IR illumination reaches up to 30 m. Built-in analytics include line-crossing detection, area monitoring, and smart motion detection with object-type filtering.
The camera supports three streams and H.265+, H.265, H.264+, and H.264 video codecs, with a maximum bitrate of 16 Mbps. A HotSwap-enabled MicroSD card slot supports local storage capacities of up to 512 GB. Two-way audio communication is supported via the built-in microphone and line-in/line-out interfaces.
The camera's metal housing, IP67 protection rating, operating temperature range of -40°C to +60°C, and TVS 2000 V lightning protection ensure reliable operation in demanding outdoor environments. Power can be supplied via 12 V DC or PoE (802.3af). ONVIF and other network protocols enable integration with the TRASSIR system and third-party solutions.
