TR-D8121IR3 v7 3.6
صوتي
audio in/out 1/1 / built-in microphoneمجال حركي واسع
real WDR (120 dB)دقة الكاميرات
1920x1080عامل الشكل
كرويةResolution
2MPمستشعر الصورة
1/2.8" CMOSمعدل البت (ميغا بايت / ثانية)
up to 8Mbpsمزود الطاقة
PoE (802.3af) / 12V DCعدسة
3.6الوزن الصافي
Ø93 x 92.2الحساسية
0.005Lux (F1.6)التخزين المحلي
MicroSD up to 256GBحماية الدخول
IP66, IK10IR
Yesمادة القضية
Metalالحماية من الصواعق
TVS 4000VPower PoE
5.5Wأبعاد
Ø93 x 92.2استهلاك الطاقة
DC: 3.5W PoE: 5.5Wدرجة حرارة العمل
-40°C … +60°Cالوضع النهاري/الليلي
الميكانيكي يرفلترواجهات الشبكة
RJ-45Field of view
H88°±5°, V48°±5°فيديو كمبرس
Н.265+ / Н.265 / H.264

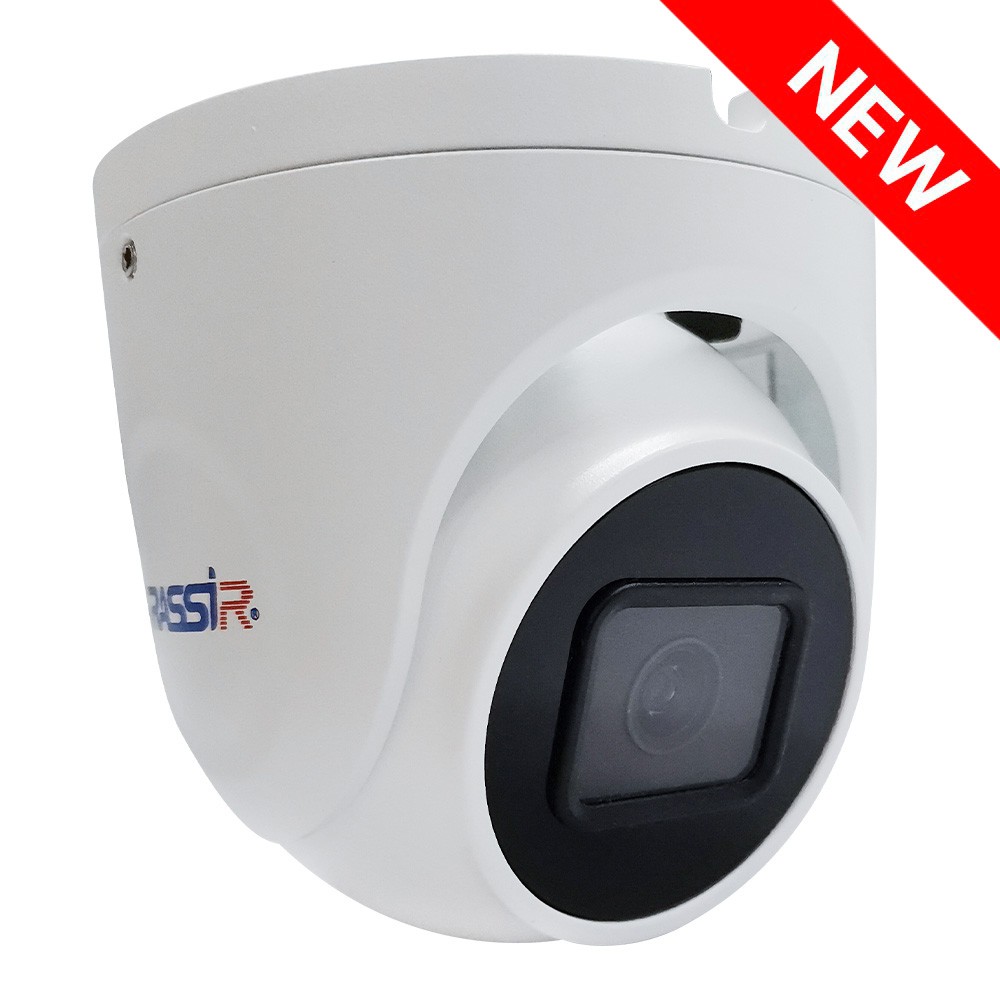

The 2 MP (1920×1080) IP camera TRASSIR TR-D8121IR3 v7 3.6 is designed for outdoor use in areas with direct access, at any time of year and day. Its metal body is protected against moisture and dust according to the IP66 standard and against mechanical impacts according to the IK10 standard. The operating temperature range is –40 °C to +60 °C. Lightning protection is provided by a TVS 4000 V device. The integrated IR illumination has a range of 30 meters.
Parameters:
- Blackface IR illumination technology
- Detection of people, vehicles, line crossing, entry, and exit from the area
- Real WDR 120 dB — reduces the effects of multi-contrast lighting on image quality
- 3D DNR — spatial noise reduction for clearer images
- Corridor mode — optimized for vertically oriented video
- 1/2.8" CMOS sensor with 0.005 lx sensitivity
- Fixed 3.6 mm lens with an 88° horizontal and 48° vertical viewing angle, aperture F/1.6
- Mechanical IR filter — blocks infrared rays when there is sufficient light
- Compression formats: H.265+, H.265, H.264
- Built-in microphone
- SD card slot supporting up to 256 GB; hot-swappable card
- Network port, audio input, audio output, reset button
- Power supply: DC 12 V or PoE
- Maximum power consumption: 3.5 W
- Dimensions: Ø93 × 92.2 mm
- Weight: 380 g
