TR-D6254IR15 4.9-156

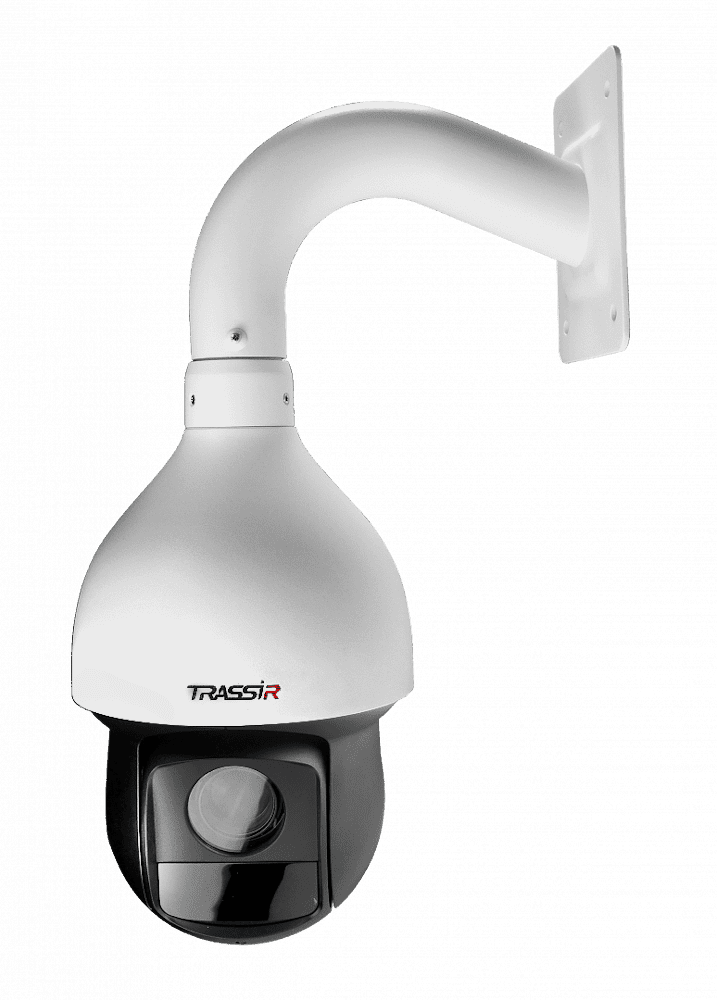

TRASSIR TR-D6254IR15

PTZ 5 MP (2560 × 1920) IP camera is adapted for outdoor use regardless of the season: protection of the case against dust and moisture - IP66, operating temperatures - –40 ºС ... +70 ºС, lightning protection - TVS 6000 V. Equipped with 32x optics. Preset speed: pan - 400 ° / s, tilt - 300 ° / s. Manual speed: swing - 300 ° / s, tilt - 200 ° / s. Pan range is endless, tilt range –10 ° ~ + 90 ° with auto flip 180 °. The camera has a set of analytical functions: motion detection, people detection, face detection, detection and classification of motor and non-motor vehicles, detection of virtual line crossing, abandoned and missing objects, area control. Automatic tracking of the object (auto-tracking) is provided.


Resolution and broadcast speed:

• - 5 MP - 20 fps.
• - 4 MP - 25 fps.
• - 3 MP - 25 fps.
• - 2 MP - 25 fps.

Functionality:

• - WDR 120 dB - shooting two frames with different shutter speeds and further forming the final balanced in terms of brightness, neutralizing the effect of different-contrast lighting.
• - BLC - backlight correction.
• - HLC - local exposure masking.
• - 2D DNR, 3D DNR - planar and spatial noise reduction.
• - Defog - enhances the contrast to eliminate the effect of fog. smoke-filled scene.
• - IR illumination with a range of 150 m.
• - Day / night function with mechanical IR-cut filter to correct color reproduction in sufficient light. In the dark, the ICR shifts to the side to operate the IR illumination and increase the sensitivity of the sensor.
• - ROI - Region of Interest.

TR-D6254IR15 is built on a 1 / 2.8 "CMOS sensor with a sensitivity of 0.005 lux at F / 1.35. Equipped with a motorized lens with a focal length of 4.9 mm ~ 156 mm, a horizontal field of view 54.50 ° ~ 2.24 °, vertical - 30.30 ° ~ 1.27 °, diagonal - 65.20 ° ~ 1.44 °, aperture F / 1.35 ~ F / 4.4, automatic iris control.

For compression, H.265 +, H.265, H.264 +, H.264 codecs are provided, to reduce the load on the server and network - 2-stream transmission, for local data storage - a slot for microSD / SDHC / SDXC with a capacity of up to 256 GB. External interfaces: RJ-45 network port, audio input, audio output, two alarm inputs, alarm output. Power supply - AC 24 V, PoE (802.3at). Power consumption at peak loads is 24 W. Dimensions - Ø186 × 309 mm. Weight - 3.9 kg.
