TR-D4251WDIR2 v3 2.8
المواصفات الفنية
صوتي
audio in/out 1/1 / built-in microphoneمجال حركي واسع
real WDR (120 dB)دقة الكاميرات
2592x1920عامل الشكل
مقببةResolution
5MPمستشعر الصورة
1/2.8" CMOSمعدل البت (ميغا بايت / ثانية)
up to 8Mbpsمزود الطاقة
PoE (802.3af) / 12V DCعدسة
2.8الوزن الصافي
0.31 / 0.40الحساسية
0.003Lux (F1.6)التخزين المحلي
MicroSD up to 512GBحماية الدخول
IP66, IK10IR
Yesمادة القضية
Metalالحماية من الصواعق
TVS 4000VPower PoE
2.9Wأبعاد
Ø102.20 x 56.38استهلاك الطاقة
DC: 2.0W PoE: 2.9Wدرجة حرارة العمل
-40°C … +60°Cالوضع النهاري/الليلي
الميكانيكي يرفلترواجهات الشبكة
RJ-45Field of view
H96°±5°, V72°±5°Class PoE
802.3af/atفيديو كمبرس
Н.265+ / Н.265 / H.264نظرة عامة
TRASSIR TR-D4251WDIR2 v3 (2.8 mm)
Functionality:
Main specifications:

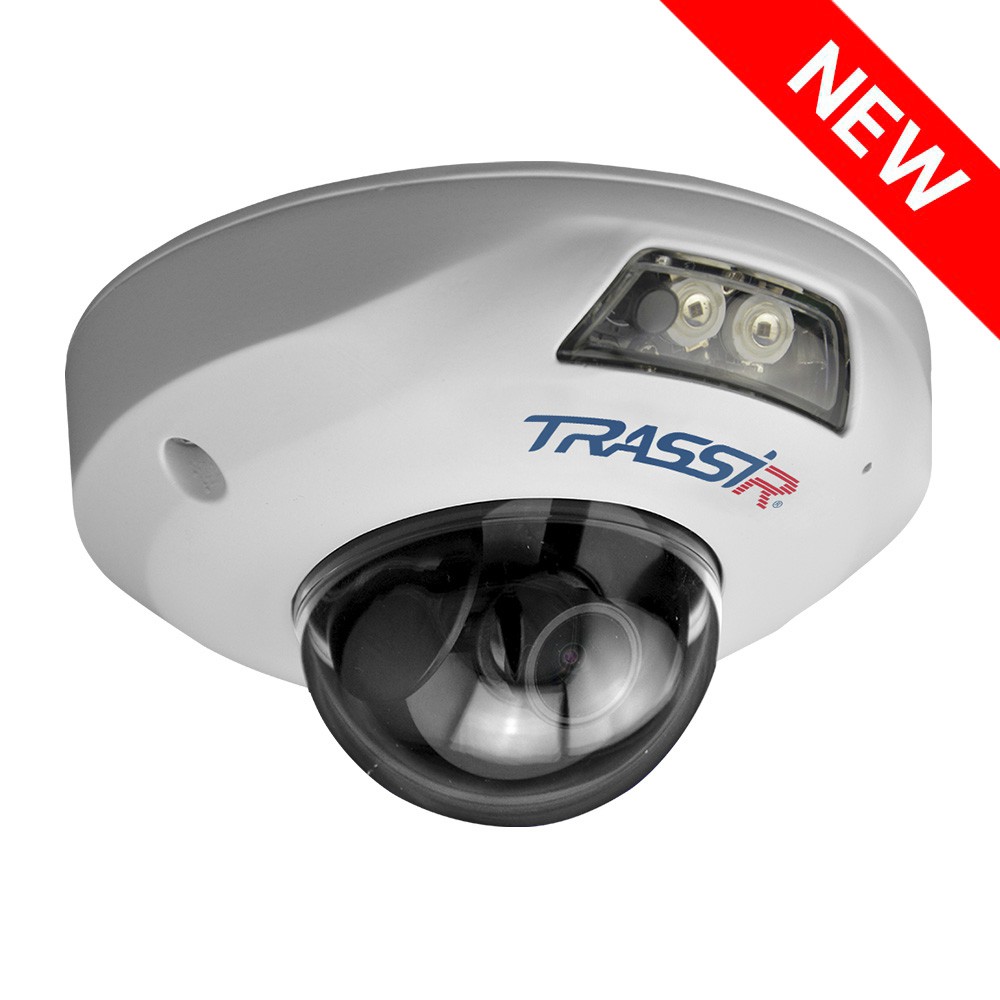

TRASSIR TR-D4251WDIR2 v3 2.8 5 MP (2592×1920) IP Camera is designed for outdoor use in all seasons. Its housing provides protection against dust and moisture (IP66), resists mechanical impacts (IK10), operates in extreme temperatures (-40 °C to +60 °C), includes lightning protection (TVS 4000), and features integrated IR illumination with a range of up to 20 m.
Functionality:
- Face detection, motion detection, people detection, line crossing, area intrusion, loitering, vehicle detection, people counting
- WDR 120 dB: Reduces the impact of high-contrast lighting on image quality
- 3D DNR: Spatial noise reduction
- Corridor mode: Captures vertically oriented scenes
- Defog: Enhances contrast to minimize the effects of fog and smoke
- BLC: Backlight compensation
- IR illumination: Up to 20 m
- Video compression: H.265+, H.265, H.264
- Main stream: 25–30 fps at 2592×1920 resolution
Main specifications:
- 1/2.8-inch CMOS sensor with 0.003 lux sensitivity
- Day/night mode with ICR: blocks IR rays in sufficient light for optimized color reproduction; mechanically shifts in darkness to increase sensitivity
- Bitrate: 8 Mbps
- Fixed lens: 2.8 mm focal length, horizontal FOV 96° ±5°, vertical FOV 72° ±5°, aperture F/1.6
- RJ-45 network port, built-in microphone
- MicroSD slot supporting up to 512 GB
- Power: DC 12 V, PoE
- Maximum power consumption: 2.9 W
- Dimensions: Ø102.20 × 56.38 mm
- Weight: 310 g
