TR-D4121IR1 v7 3.6
صوتي
audio in/out 1/1 / built-in microphoneمجال حركي واسع
real WDR (120 dB)دقة الكاميرات
1920x1080عامل الشكل
مقببةResolution
2MPمستشعر الصورة
1/2.8" CMOSمعدل البت (ميغا بايت / ثانية)
up to 8Mbpsمزود الطاقة
PoE (802.3af) / 12V DCعدسة
3.6الوزن الصافي
0.31 / 0.40الحساسية
0.005Lux (F1.6)التخزين المحلي
MicroSD up to 256GBحماية الدخول
IP66, IK10IR
Yesمادة القضية
Metalالحماية من الصواعق
TVS 4000VPower PoE
3.6Wأبعاد
Ø102.20 x 56.38استهلاك الطاقة
DC: 3.0W PoE: 3.6Wدرجة حرارة العمل
-40°C … +60°Cالوضع النهاري/الليلي
الميكانيكي يرفلترواجهات الشبكة
RJ-45Field of view
H88°±5°, V48°±5°فيديو كمبرس
Н.265+ / Н.265 / H.264

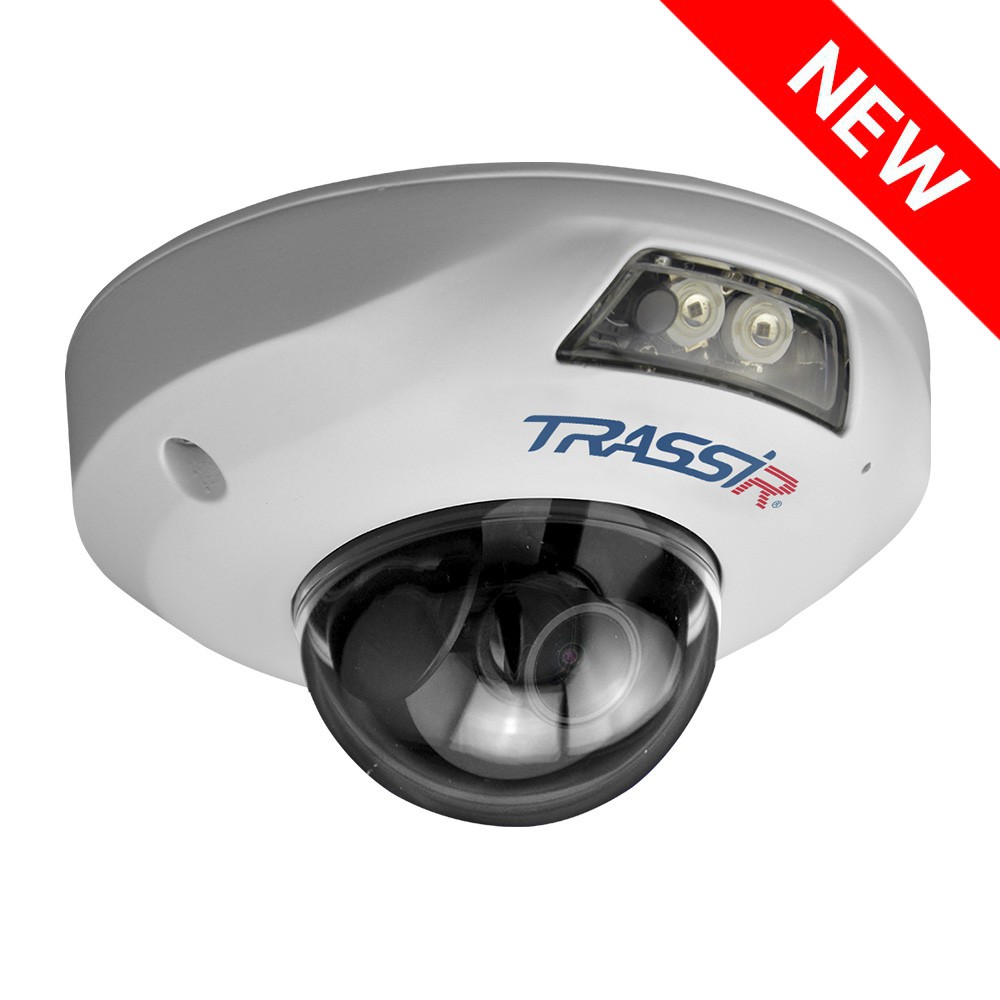

The TRASSIR TR-D4121IR1 v7 3.6 is a 2 MP (1920×1080) IP camera designed for outdoor use in areas with direct public access, delivering stable operation year-round, day or night. The metal housing is rated IP66 for protection against dust and moisture, and IK10 for resistance to mechanical impact. The camera functions in a wide temperature range from –40 °C to +60 °C, features TVS 4000 V lightning protection, and includes integrated IR illumination with a range of up to 15 meters.
Parameters:
- Detection capabilities: people, vehicles, line crossing, area entry and exit
- Real WDR 120 dB – enhances image clarity in high-contrast lighting conditions
- 3D DNR – spatial noise reduction for improved image quality in low-light environments
- Corridor mode – ideal for vertically oriented scenes
- 1/2.8" CMOS sensor with 0.005 lx minimum illumination
- Fixed 3.6 mm lens with 88° horizontal and 48° vertical viewing angles, F/1.6 aperture
- Mechanical IR cut filter – blocks infrared light when ambient lighting is sufficient
- Video compression formats: H.265+, H.265, H.264
- Built-in microphone
- SD card slot supporting up to 256 GB (hot-swappable)
- Interfaces: network port, audio input, audio output, reset button
- Power supply: DC 12 V or PoE
- Maximum power consumption: 3.0 W
- Dimensions: Ø102.20 × 56.38 mm
- Weight: 310 g
