TR-D3123ZIR3 v7 2.7–13.5

المواصفات الفنية

صوتي

audio in/out 1/1 / built-in microphone

مجال حركي واسع

real WDR (120 dB)

دقة الكاميرات

1920x1080

عامل الشكل

مقببة

Resolution

2MP

مستشعر الصورة

1/2.8" CMOS

معدل البت (ميغا بايت / ثانية)

up to 8Mbps

مزود الطاقة

PoE (802.3af) / 12V DC

عدسة

2.7 - 13.5 (motorzoom)

الوزن الصافي

0.46 / 0.59

الحساسية

0.005Lux (F1.6)

التخزين المحلي

MicroSD up to 256GB

حماية الدخول

IP66, IK10

IR

Yes

مادة القضية

Metal

الحماية من الصواعق

TVS 4000V

Power PoE

7.6W

أبعاد

Ø116.10 x 96.51

استهلاك الطاقة

DC: 6.5W PoE: 7.6W

درجة حرارة العمل

-40°C … +60°C

الوضع النهاري/الليلي

الميكانيكي يرفلتر

واجهات الشبكة

RJ-45

Field of view

H102° - 34°±5°, V54° - 20°±5°

فيديو كمبرس

Н.265+ / Н.265 / H.264
نظرة عامة

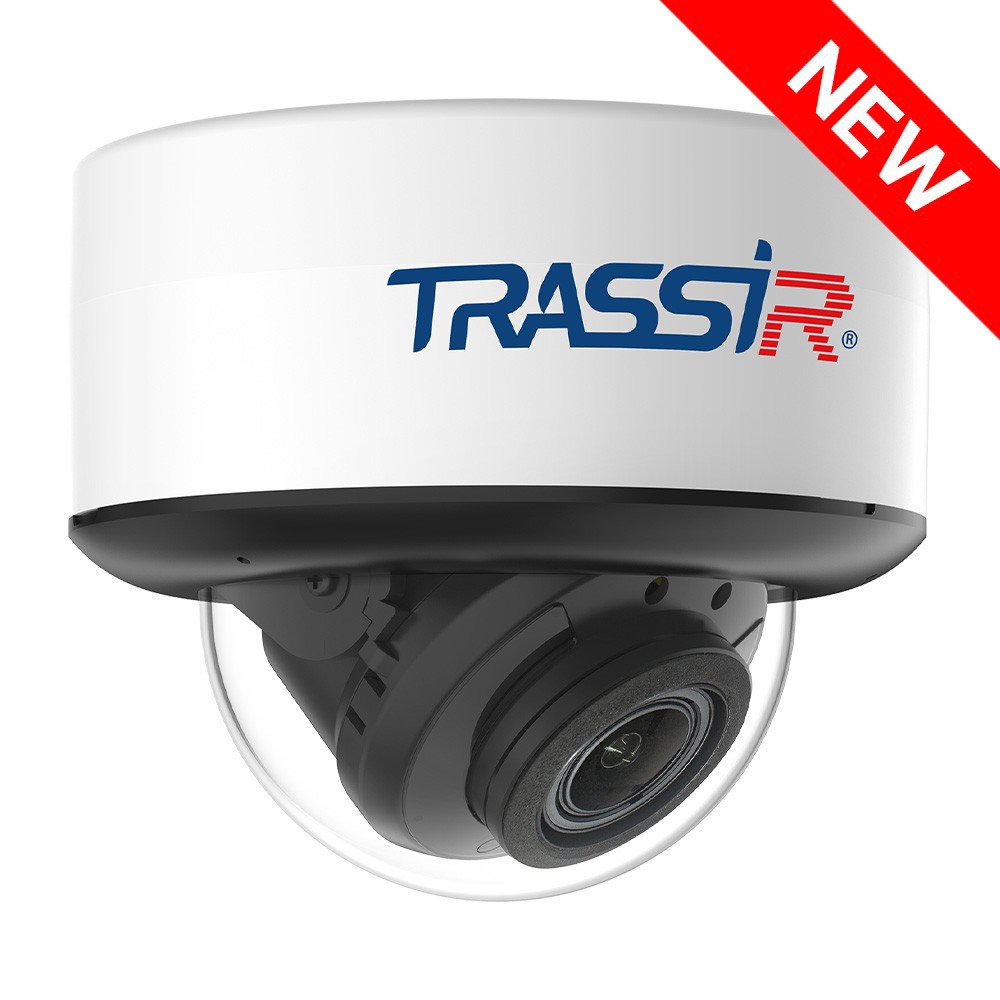

TRASSIR TR-D3123ZIR3 v7 (2.7–13.5 mm)

The TRASSIR TR-D3123ZIR3 v7 2.7–13.5 is a 2 MP (1920×1080) IP camera designed for outdoor use in areas with direct public access, providing dependable operation in all weather conditions, day or night. The metal housing is rated IP66 for protection against dust and moisture, and IK10 for resistance to mechanical impact. The camera operates in a wide temperature range from –40 °C to +60 °C, features TVS 4000 V lightning protection, and includes integrated IR illumination with a range of up to 60 meters.


Parameters:
  • Blackface IR illumination technology
  • Detection capabilities: people, vehicles, line crossing, area entry and exit
  • Real WDR 120 dB – enhances image quality in high-contrast lighting conditions
  • 3D DNR – spatial noise reduction for clearer images in low light
  • Corridor mode – optimized for vertically oriented scenes
  • 1/2.8" CMOS sensor with 0.005 lx minimum illumination
  • Vari-focal lens (2.7–13.5 mm) with horizontal viewing angles of 102° to 34°, vertical angles of 54° to 20°, and F/1.6 aperture
  • Mechanical IR cut filter – blocks infrared light when sufficient ambient lighting is available
  • Video compression: H.265+, H.265, H.264
  • Built-in microphone
  • SD card slot supporting up to 256 GB (hot-swappable)
  • Interfaces: network port, audio input, audio output, reset button
  • Power supply: DC 12 V or PoE
  • Maximum power consumption: 6.5 W
  • Dimensions: Ø116.10 × 96.51 mm
  • Weight: 460 g
