TR-D3121IR3 v7 3.6
صوتي
audio in/out 1/1 / built-in microphoneمجال حركي واسع
real WDR (120 dB)دقة الكاميرات
1920x1080عامل الشكل
مقببةResolution
2MPمستشعر الصورة
1/2.8" CMOSمعدل البت (ميغا بايت / ثانية)
up to 8Mbpsمزود الطاقة
PoE (802.3af) / 12V DCعدسة
3.6الوزن الصافي
0.45 / 0.58الحساسية
0.005Lux (F1.6)التخزين المحلي
MicroSD up to 256GBحماية الدخول
IP66, IK10IR
Yesمادة القضية
Metalالحماية من الصواعق
TVS 4000VPower PoE
5.1Wأبعاد
Ø116.10 x 96.51استهلاك الطاقة
DC: 4.0W PoE: 5.1Wدرجة حرارة العمل
-40°C … +60°Cالوضع النهاري/الليلي
الميكانيكي يرفلترواجهات الشبكة
RJ-45Field of view
H88°±5°, V48°±5°فيديو كمبرس
Н.265+ / Н.265 / H.264

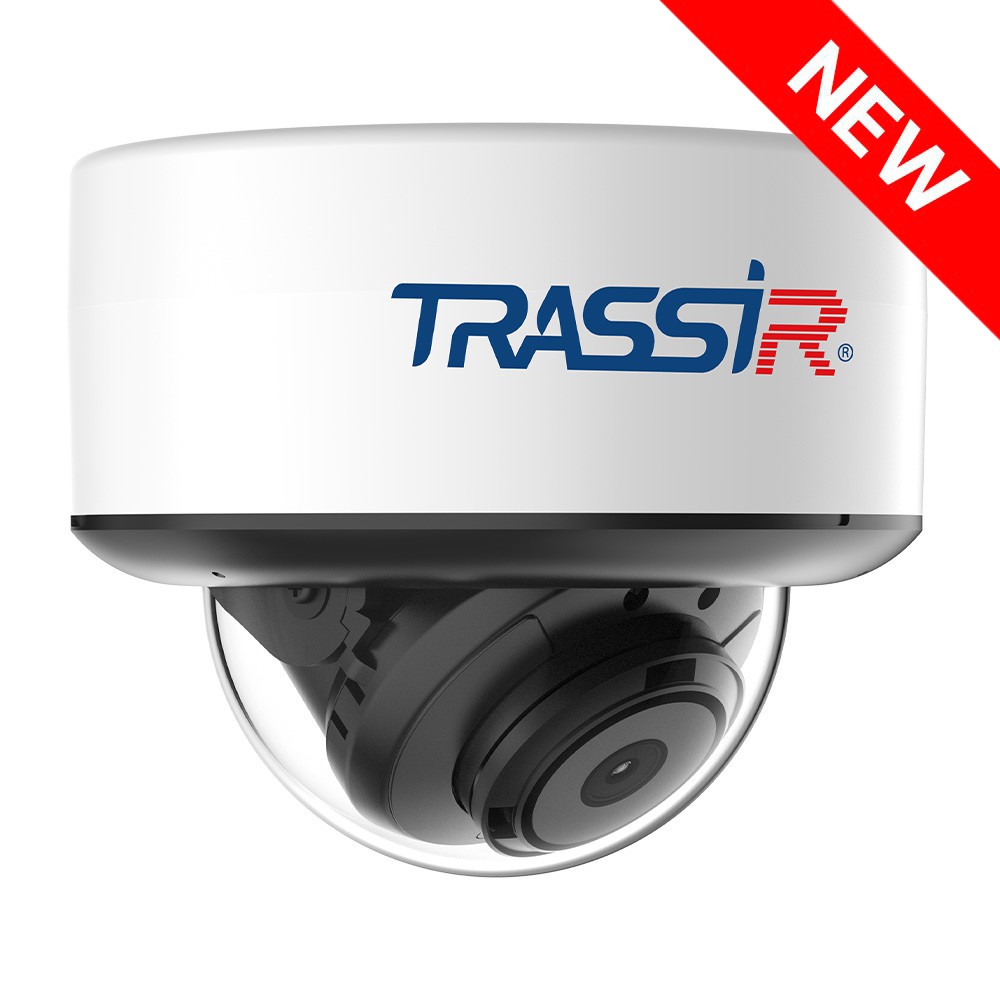

The TRASSIR TR-D3121IR3 v7 3.6 is a 2 MP (1920×1080) IP camera designed for outdoor use in areas with direct public access, delivering reliable performance throughout the year, day or night. Its durable metal housing is rated IP66 for protection against dust and moisture, and IK10 for resistance to mechanical impact. The camera operates within a temperature range of –40 °C to +60 °C, includes TVS 4000 V lightning protection, and features integrated IR illumination with a range of up to 30 meters.
Parameters:
- Blackface IR illumination technology
- Detection capabilities: people, vehicles, line crossing, area entry and exit
- Real WDR 120 dB – improves image quality in scenes with high-contrast lighting
- 3D DNR – spatial noise reduction for enhanced low-light performance
- Corridor mode – ideal for vertically oriented field of view
- 1/2.8" CMOS sensor with 0.005 lx minimum illumination
- Fixed 3.6 mm lens with 88° horizontal and 48° vertical field of view, F/1.6 aperture
- Mechanical IR cut filter – blocks infrared light under sufficient ambient illumination
- Video compression: H.265+, H.265, H.264
- Built-in microphone
- SD card slot supporting up to 256 GB (hot-swappable)
- Interfaces: network port, audio input, audio output, reset button
- Power supply: DC 12 V or PoE
- Maximum power consumption: 4.0 W
- Dimensions: Ø116.10 × 96.51 mm
- Weight: 450 g
