TR-D2123ZIR6 v7 2.7–13.5
صوتي
audio in/out 1/1 / built-in microphoneمجال حركي واسع
real WDR (120 dB)دقة الكاميرات
1920x1080عامل الشكل
اسطوانيةResolution
2MPمستشعر الصورة
1/2.8" CMOSمعدل البت (ميغا بايت / ثانية)
up to 8Mbpsمزود الطاقة
PoE (802.3af) / 12V DCعدسة
2.7 - 13.5 (motorzoom)الوزن الصافي
0.635 / 0.830الحساسية
0.005Lux (F1.6)التخزين المحلي
MicroSD up to 256GBحماية الدخول
IP67, IK08IR
Yesمادة القضية
Metalالحماية من الصواعق
TVS 4000VPower PoE
10.9Wأبعاد
234.3 x 77.5 x 75.3استهلاك الطاقة
DC: 9.8W PoE: 10.9Wدرجة حرارة العمل
-40°C … +60°Cالوضع النهاري/الليلي
الميكانيكي يرفلترواجهات الشبكة
RJ-45Field of view
H102° - 34°±5°, V54° - 20°±5°فيديو كمبرس
Н.265+ / Н.265 / H.264

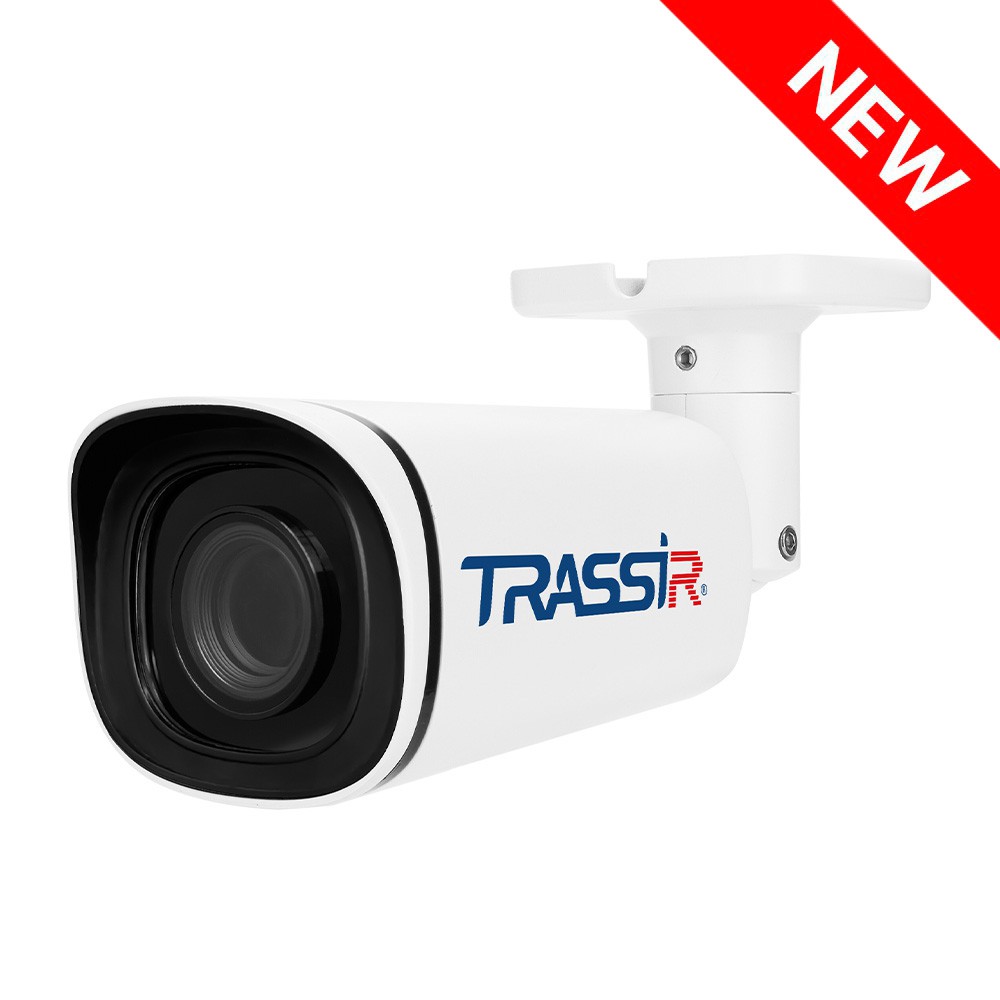

The TRASSIR TR-D2123ZIR6 v7 2.7–13.5 is a 2 MP (1920×1080) IP camera designed for outdoor use in areas with direct public access, ensuring reliable performance throughout the year, day or night. Its robust metal housing is rated IP67 for protection against dust and moisture and IK08 for resistance to mechanical impacts. The camera operates in extreme temperatures ranging from –40 °C to +60 °C, features TVS 4000 V lightning protection, and includes integrated IR illumination with a range of up to 60 meters.
Parameters:
- Blackface IR illumination technology
- Detection capabilities: people, vehicles, line crossing, area entry and exit
- Real WDR 120 dB – enhances image quality under high-contrast lighting
- 3D DNR – spatial noise reduction for improved low-light performance
- Corridor mode – optimized for vertically oriented scenes
- 1/2.8" CMOS sensor with 0.005 lx minimum illumination
- Vari-focal lens (2.7–13.5 mm) with horizontal viewing angle from 102° to 34°, vertical angle from 54° to 20°, and F/1.6 aperture
- Mechanical IR cut filter – blocks infrared light under sufficient ambient lighting
- Video compression formats: H.265+, H.265, H.264
- Built-in microphone
- SD card slot supporting up to 256 GB (hot-swappable)
- Interfaces: network port, audio input, audio output, reset button
- Power supply: DC 12 V or PoE
- Maximum power consumption: 9.8 W
- Dimensions: Ø234.3 × 77.5 × 75.3 mm
- Weight: 635 g
