TR-D7121IR1 v7 2.8
المواصفات الفنية
صوتي
built-in microphone / built-in speakerمجال حركي واسع
real WDR (120 dB)دقة الكاميرات
1920x1080عامل الشكل
داخليةResolution
2MPمستشعر الصورة
1/2.8" CMOSمعدل البت (ميغا بايت / ثانية)
up to 8Mbpsمزود الطاقة
PoE (802.3af) / 12V DCعدسة
2.8الوزن الصافي
0.095 / 0.220الحساسية
0.005Lux (F1.6)التخزين المحلي
MicroSD up to 256GBIR
Yesمادة القضية
لدنالحماية من الصواعق
NoPower PoE
2.9Wأبعاد
129 x 99 x 60استهلاك الطاقة
DC: 2.0W PoE: 2.9Wدرجة حرارة العمل
-10°C … +50°Cالوضع النهاري/الليلي
الميكانيكي يرفلترواجهات الشبكة
RJ-45Field of view
H110°±5°, V60°±5°فيديو كمبرس
Н.265+ / Н.265 / H.264نظرة عامة

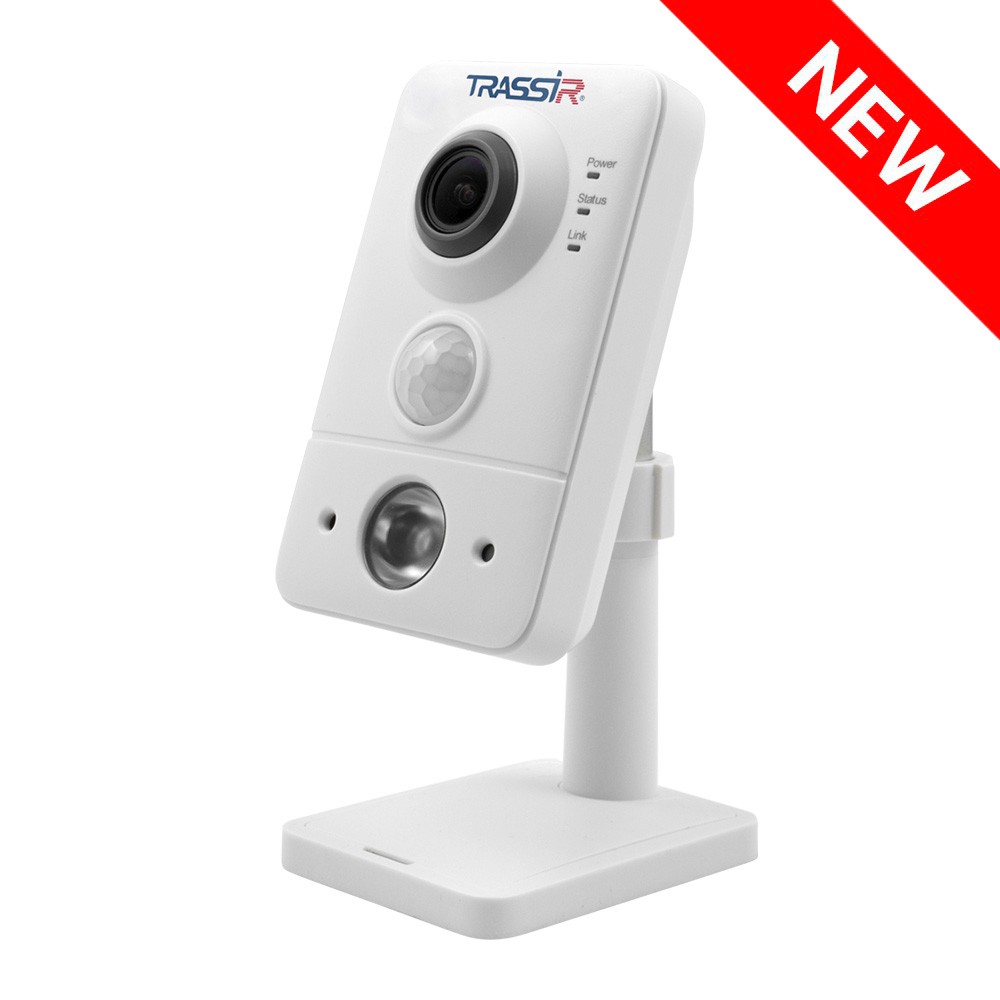

TRASSIR TR-D7121IR1 v7 (2.8 mm)
Parameters:
The indoor 2 MP (1920×1080) IP camera TRASSIR TR-D7121IR1 v7 2.8 features IR illumination with a 10 m range for night surveillance, a built-in microphone and speaker for two-way audio communication, and a PIR sensor for motion detection based on thermal changes. It supports advanced analytics such as human motion detection, virtual line crossing detection, and intrusion detection.
Parameters:
- Detection of people, vehicles, line crossing, and area entry and exit
- Real WDR 120 dB — reduces the effects of multi-contrast lighting on image quality
- 3D DNR — spatial noise reduction for clearer images in low light
- Corridor mode — optimized for vertically oriented video
- 1/2.8" CMOS sensor with 0.005 lx sensitivity
- Mechanical IR filter — blocks infrared rays when ambient light is sufficient
- Compression formats: H.265+, H.265, H.264
- Built-in microphone
- SD card slot supporting up to 256 GB
- Fixed 2.8 mm lens with a 110° horizontal and 60° vertical viewing angle, aperture F/1.6
- RJ-45 network port
- microSD slot supporting up to 256 GB
- Power connector
- Power supply: 12 V DC or PoE
- Maximum power consumption: 2 W
- Dimensions: 129 × 99 × 60 mm
- Weight: 95 g
- Operating temperature range: –10 °C to +50 °C
