TR-D2121IR3 v7 2.8
المواصفات الفنية
صوتي
audio in/out 1/1 / built-in microphoneمجال حركي واسع
real WDR (120 dB)دقة الكاميرات
1920x1080عامل الشكل
اسطوانيةResolution
2MPمستشعر الصورة
1/2.8" CMOSمعدل البت (ميغا بايت / ثانية)
up to 8Mbpsمزود الطاقة
PoE (802.3af) / 12V DCعدسة
2.8الوزن الصافي
0.460 / 0.565الحساسية
0.005Lux (F1.6)التخزين المحلي
MicroSD up to 256GBحماية الدخول
IP67IR
Yesمادة القضية
Metalالحماية من الصواعق
TVS 4000VPower PoE
5.6Wأبعاد
184.7 x 66.5 x 63.05استهلاك الطاقة
DC: 3.8W PoE: 5.6Wدرجة حرارة العمل
-40°C … +60°Cالوضع النهاري/الليلي
الميكانيكي يرفلترواجهات الشبكة
RJ-45Field of view
H110°±5°, V60°±5°نظرة عامة

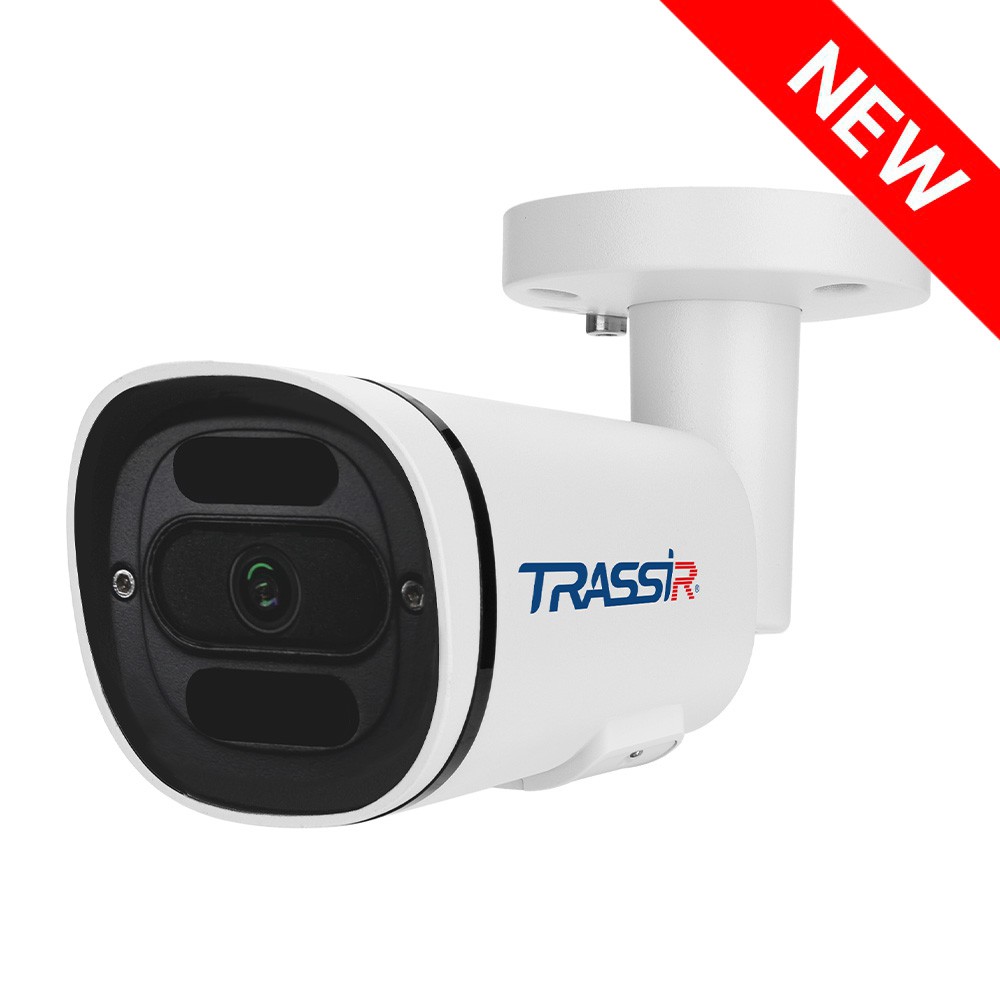

TRASSIR TR-D2121IR3 v7 (2.8 mm)
Parameters:
The TRASSIR TR-D2121IR3 v7 2.8 is a 2 MP (2560×1920) IP camera designed for outdoor use in areas with direct public access, providing reliable performance year-round, day or night. Its metal housing is IP67-rated for protection against dust and moisture. The camera operates in a wide temperature range from -40 °C to +60 °C and features 4000 V TVS lightning protection. The built-in IR illumination has a range of up to 35 meters.
Parameters:
- Blackface IR illumination technology
- Detection capabilities: people, vehicles, line crossing, and area entry/exit
- Real WDR 120 dB – reduces the impact of high-contrast lighting for improved image quality
- 3D DNR – spatial noise reduction for clearer images in low light
- Corridor mode – optimized for vertically oriented scenes
- 1/2.8" CMOS sensor with 0.005 lx minimum illumination
- Fixed 2.8 mm lens with a 98° horizontal and 71° vertical field of view, F/1.6 aperture
- Mechanical IR cut filter – blocks infrared light when sufficient visible light is present
- Video compression: H.265+, H.265, H.264
- Built-in microphone
- SD card slot supporting up to 256 GB (hot-swappable)
- Interfaces: network port, audio input, audio output, reset button
- Power supply: DC 12 V or PoE
- Maximum power consumption: 3.8 W
- Dimensions: Ø184.7 × 66.5 × 63.05 mm
- Weight: 460 g
التوثيق
TR-D2121IR3 v7 2.8.pdf منتجات أخرى
