TR-D8221WDIR3 v3 1.9
صوتي
audio in/out 1/1 / built-in microphoneمجال حركي واسع
real WDR (120 dB)دقة الكاميرات
1920x1080عامل الشكل
كرويةResolution
2MPمستشعر الصورة
1/2.8" CMOSمعدل البت (ميغا بايت / ثانية)
up to 8Mbpsمزود الطاقة
PoE (802.3af) / 12V DCعدسة
1.9الوزن الصافي
0.40 / 0.49الحساسية
0.003Lux (F1.8)التخزين المحلي
MicroSD up to 512GBحماية الدخول
IP66, IK10IR
Yesمادة القضية
Metalالحماية من الصواعق
TVS 4000VPower PoE
5.3Wأبعاد
Ø93 x 92.2استهلاك الطاقة
DC: 3.5W PoE: 5.3Wدرجة حرارة العمل
-40°C … +60°Cالوضع النهاري/الليلي
الميكانيكي يرفلترواجهات الشبكة
RJ-45Field of view
H118°±5°, V62°±5°Class PoE
802.3af/atفيديو كمبرس
Н.265+ / Н.265 / H.264

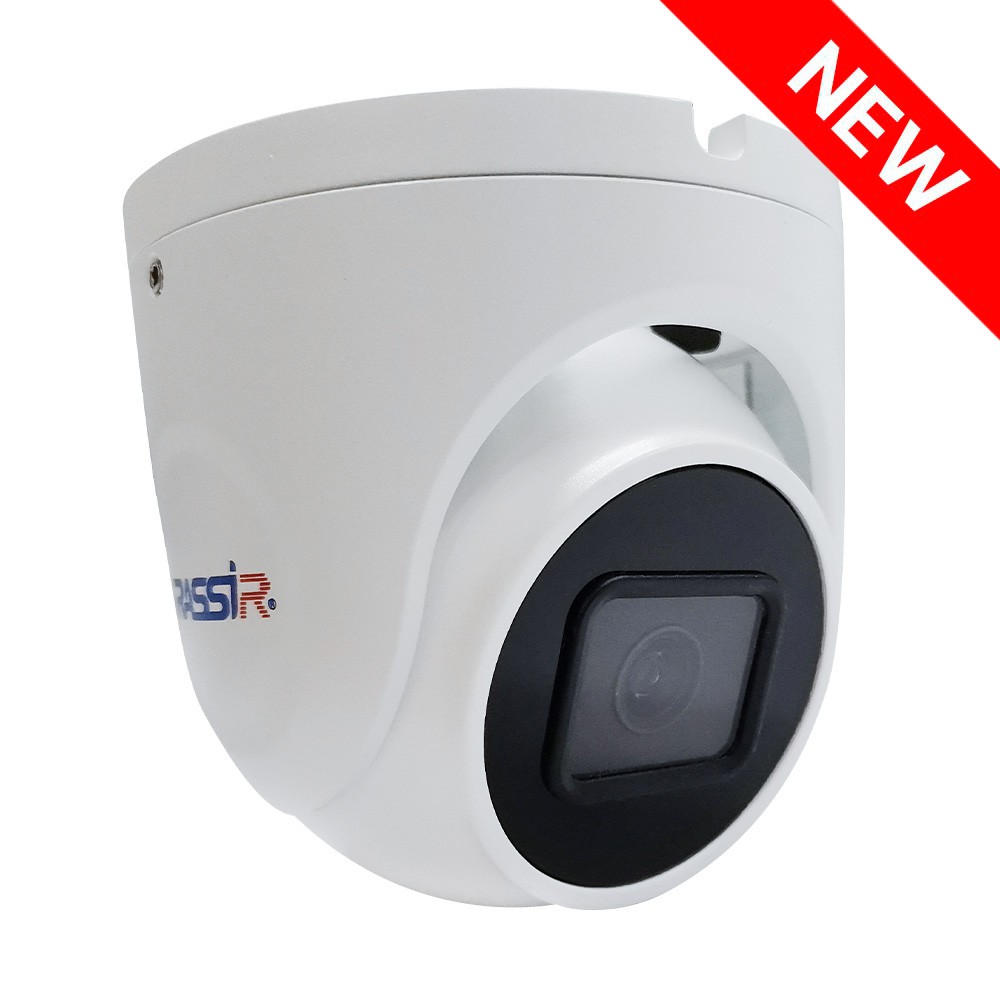

2 MP (1920×1080) IP Camera TRASSIR TR-D8221WDIR3 v3 1.9
Designed for year-round outdoor use with a metal housing protected against moisture and dust (IP66), vandal-resistant (IK10), operating in temperatures from -40 °C to +60 °C, with TVS 4000 lightning protection and integrated IR illumination with a range of 30 meters.
Functionality:
- Face detection, motion detection, people detection, line crossing, area intrusion, loitering detection, vehicle detection, people counting
- Real WDR 120 dB – reduces the impact of high-contrast lighting on image quality
- 3D DNR – spatial noise reduction
- Corridor mode – vertically oriented shooting
- Defog – increases contrast to reduce the effects of fog and smoke
- BLC – backlight compensation
- IR illumination with a range of 30 meters
- Compression: H.265+, H.265, H.264
- Main stream: 25–30 fps at 1920×1080, 1280×960, 1280×720
- Sub stream: 25–30 fps at 1280×720, 720×576, 640×480
- Third stream: 25–30 fps at 720×576, 640×480, 640×240
Specifications:
The TR-D8221WDIR3 v3 1.9 is built on a 1/2.8-inch CMOS sensor with a sensitivity of 0.003 lux. It supports H.265+, H.265, and H.264 codecs for compression, includes an integrated microphone for audio monitoring, and offers IR illumination with a range of 30 meters for night surveillance.
- Bitrate: up to 8 Mbps
- Fixed lens: focal length 1.9 mm; horizontal viewing angle 118° ± 5°; vertical viewing angle 62° ± 5°; aperture F/1.8
- Equipped with an RJ-45 network port and a microSD slot supporting up to 512 GB
- Power supply: DC 12 V, PoE; maximum power consumption: 5.3 W
- Dimensions: Ø93 × 92.2 mm
- Weight: 400 g
