TR-D3221WDIR3 v3 3.6
صوتي
audio in/out 1/1 / built-in microphoneمجال حركي واسع
real WDR (120 dB)دقة الكاميرات
1920x1080عامل الشكل
مقببةResolution
2MPمستشعر الصورة
1/2.8" CMOSمعدل البت (ميغا بايت / ثانية)
up to 8Mbpsمزود الطاقة
PoE (802.3af) / 12V DCعدسة
3.6الوزن الصافي
0.45 / 0.58الحساسية
0.003Lux (F1.8)التخزين المحلي
MicroSD up to 512GBحماية الدخول
IP66, IK10IR
Yesمادة القضية
Metalالحماية من الصواعق
TVS 4000VPower PoE
4.8Wأبعاد
Ø116.10 x 96.51استهلاك الطاقة
DC: 3.5W PoE: 4.8Wدرجة حرارة العمل
-40°C … +60°Cالوضع النهاري/الليلي
الميكانيكي يرفلترواجهات الشبكة
RJ-45Field of view
H87°±5°, V48°±5°Class PoE
802.3af/atفيديو كمبرس
Н.265+ / Н.265 / H.264

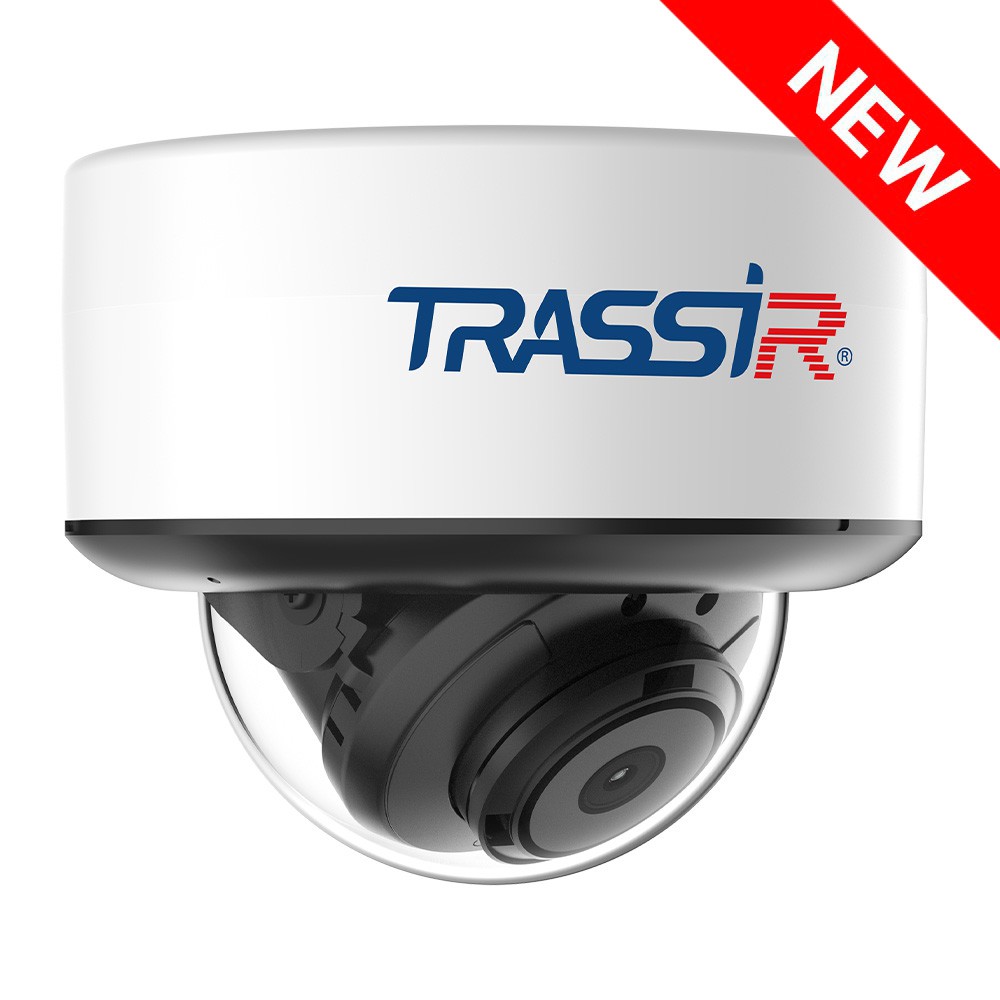

2 MP (1920×1080) IP Camera TRASSIR TR-D3221WDIR3 v3 3.6
Adapted for year-round outdoor use under direct exposure to precipitation, featuring IP66-rated protection against moisture and dust, IK10-rated protection against mechanical impacts, an operating temperature range of -40 °C to +60 °C, and TVS 4000 V lightning protection.
Functionality:
- Face detection, motion detection, people detection, line crossing, area intrusion, loitering detection, vehicle detection, and people counting.
- Real WDR 120 dB – reduces the impact of high-contrast lighting on image quality.
- 3D DNR – spatial noise reduction.
- Corridor mode – vertically oriented shooting.
- Defog – increases contrast to reduce the effects of fog and smoke.
- BLC – backlight compensation.
- IR illumination with a range of 30 meters.
- Compression: H.265+, H.265, H.264.
- Main stream: 25–30 fps at 1920×1080, 1280×960, 1280×720.
- Sub stream: 25–30 fps at 1280×720, 720×576, 640×480.
- Third stream: 25–30 fps at 720×576, 640×480, 640×240.
Specifications:
The TR-D3221WDIR3 v3 3.6 is built on a 1/2.8-inch CMOS sensor with a sensitivity of 0.003 lux. It includes an integrated microphone for audio monitoring and IR illumination with a range of 30 meters for night surveillance.
- Bitrate: up to 8 Mbps.
- Fixed lens: focal length 3.6 mm; horizontal viewing angle 87° ± 5°; vertical viewing angle 48° ± 5°; aperture F/1.8.
- Equipped with an RJ-45 network port and a microSD slot supporting up to 512 GB.
- Power supply: DC 12 V, PoE; maximum power consumption: 4.8 W.
- Dimensions: Ø116.10 × 96.51 mm.
- Weight: 450 g
