TR-D2221WDIR4 v3 1.9

المواصفات الفنية

صوتي

audio in/out 1/1 / built-in microphone

مجال حركي واسع

real WDR (120 dB)

دقة الكاميرات

1920x1080

عامل الشكل

اسطوانية

Resolution

2MP

مستشعر الصورة

1/2.8" CMOS

معدل البت (ميغا بايت / ثانية)

up to 8Mbps

مزود الطاقة

PoE (802.3af) / 12V DC

عدسة

1.9

الوزن الصافي

0.460 / 0.565

الحساسية

0.003Lux (F1.8)

التخزين المحلي

MicroSD up to 512GB

حماية الدخول

IP67

IR

Yes

مادة القضية

Metal

الحماية من الصواعق

TVS 4000V

Power PoE

5.0W

أبعاد

184.7 x 66.5 x 63.05

استهلاك الطاقة

DC: 4.0W PoE: 5.0W

درجة حرارة العمل

-40°C … +60°C

الوضع النهاري/الليلي

الميكانيكي يرفلتر

واجهات الشبكة

RJ-45

Field of view

H139°±5°, V74°±5°

Class PoE

802.3af/at

فيديو كمبرس

Н.265+ / Н.265 / H.264
نظرة عامة

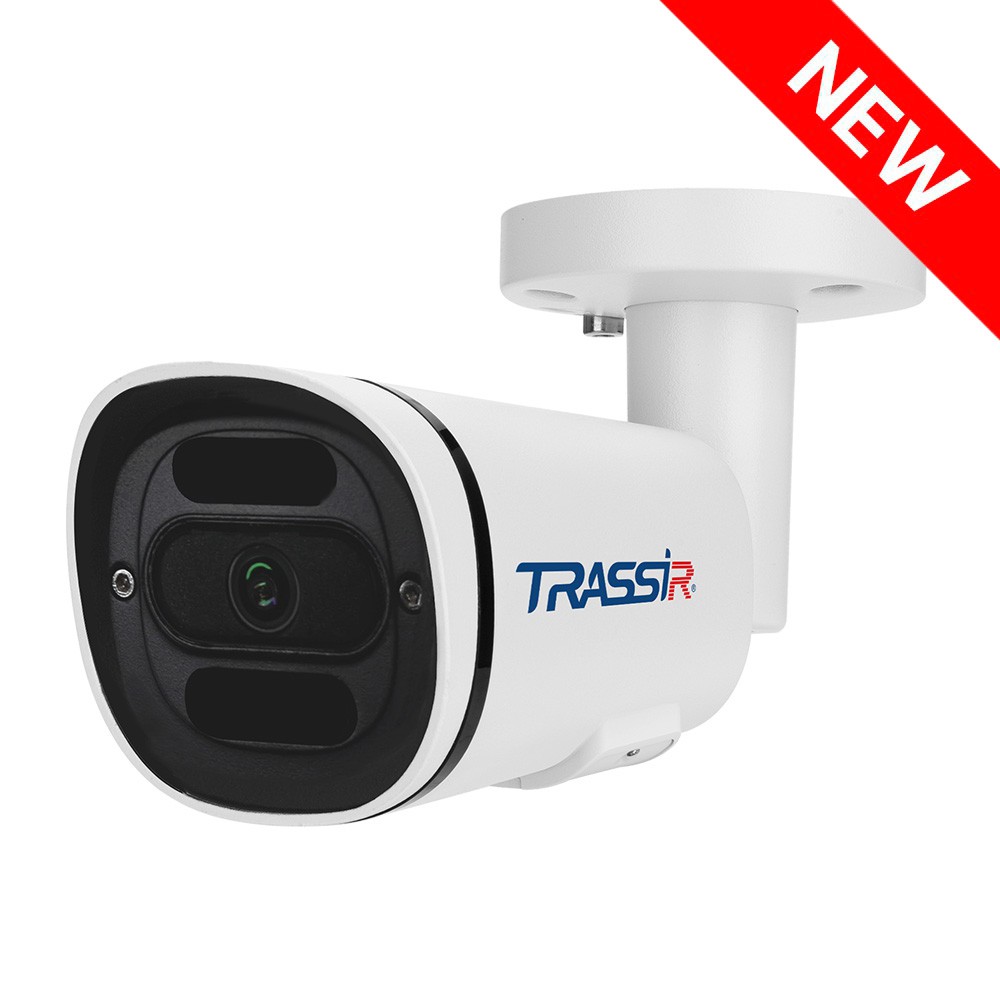

TRASSIR TR-D2221WDIR4 v3 (1.9 mm)

2 MP (1920×1080) IP Camera TRASSIR TR-D2221WDIR4 v3 1.9 Designed for reliable outdoor use in any season, featuring an IP67-rated housing for protection against moisture and dust, an operating temperature range of -40 °C to +60 °C, TVS 4000 lightning protection, and integrated IR illumination with a range of 40 meters.


Functionality:
    • Face detection, motion detection, people detection, line crossing, area intrusion, loitering detection, vehicle detection, and people counting.
    • WDR 120 dB – reduces the impact of high-contrast lighting on image quality.
    • 3D DNR – spatial noise reduction.
    • Corridor mode – for vertically oriented shooting.
    • Defog – increases contrast to reduce the effects of fog and smoke.
    • BLC – backlight compensation.
    • IR illumination with a range of 40 meters.
    • Compression: H.265+, H.265, H.264.
    • Main stream: 25–30 fps at 1920×1080, 1280×960, 1280×720.
    • Sub stream: 25–30 fps at 1280×720, 720×576, 640×480.
    • Third stream: 25–30 fps at 720×576, 640×480, 640×240.

Specifications:

The TR-D2221WDIR4 v3 1.9 features a 1/2.8-inch CMOS sensor with a sensitivity of 0.003 lux. It supports day/night mode with ICR: under sufficient light, the filter blocks IR rays for optimal color rendition, while in low-light conditions, it mechanically shifts to increase sensitivity.

    • Bitrate: up to 8 Mbps.
    • Fixed lens: focal length 1.9 mm, horizontal viewing angle 118° ± 5°, vertical viewing angle 62° ± 5°, aperture F/1.8.
    • Equipped with an RJ-45 network port, built-in microphone, and microSD slot supporting up to 512 GB.
    • Power: DC 12 V, PoE; maximum power consumption: 5.0 W.
    • Dimensions: 184.7 × 66.5 × 63.05 mm.
    • Weight: 460 g.
