TR-D3151DL3 v7 3.6
صوتي
audio in/out 1/1 / built-in microphoneمجال حركي واسع
real WDR (120 dB)دقة الكاميرات
2560x1920عامل الشكل
مقببةResolution
5MPدقة إخراج الفيديو القصوى
2560x1920مستشعر الصورة
1/2.8" CMOSمعدل البت (ميغا بايت / ثانية)
up to 8Mbpsمزود الطاقة
PoE (802.3af) / 12V DCعدسة
2.8الوزن الصافي
0.450 / 0.580الحساسية
0.0015Lux (F1.6)التخزين المحلي
MicroSD up to 512GBحماية الدخول
IP66, IK10IR
Yesمادة القضية
Metalالحماية من الصواعق
TVS 4000VPower PoE
6.0Wأبعاد
Ø116.10 x 96.51استهلاك الطاقة
DC: 4.9W PoE: 6.0Wدرجة حرارة العمل
-40°C … +60°Cالوضع النهاري/الليلي
الميكانيكي يرفلترField of view
H80°±5°, V56°±5°Class PoE
802.3af/atفيديو كمبرس
Н.265+ / Н.265 / H.264 / MJPEG

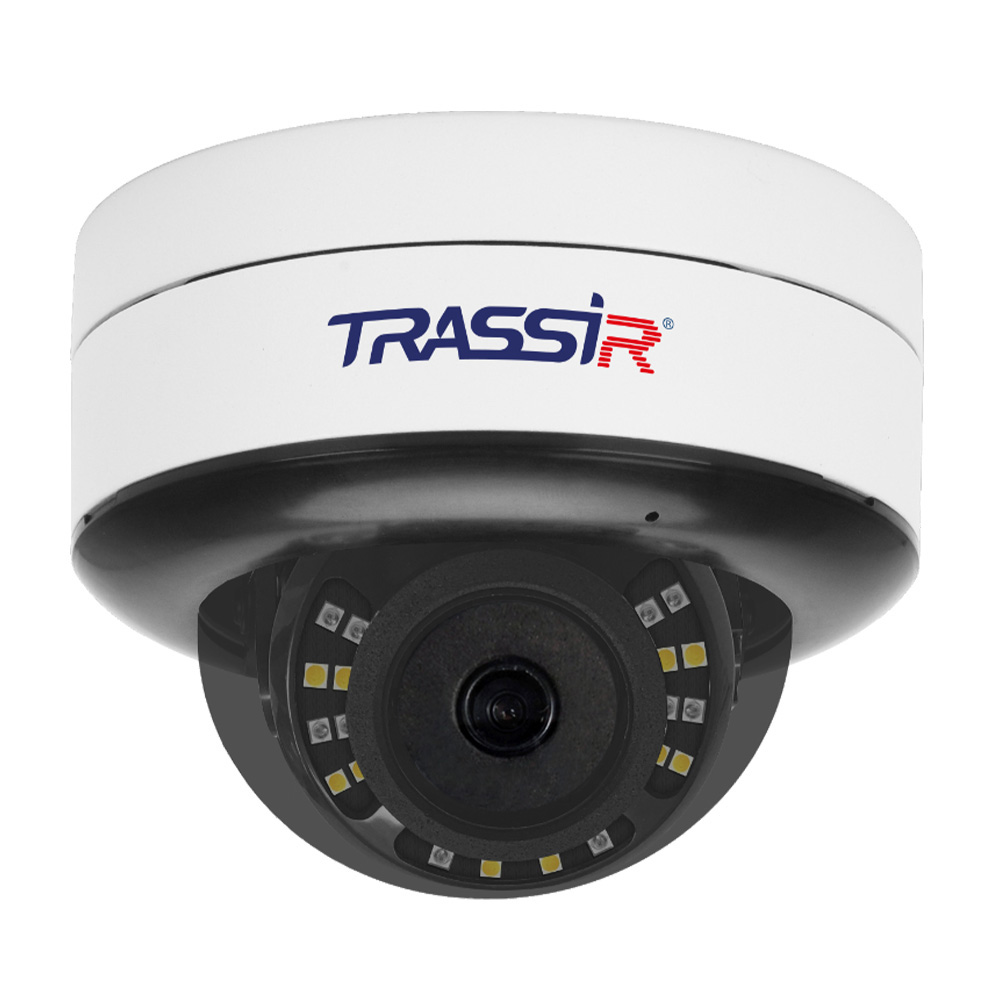

TRASSIR TR-D3151DL3 v7 3.6 is an outdoor dome camera with dual intelligent illumination designed for 24/7 video surveillance. Equipped with a 1/2.8" CMOS sensor, the camera delivers images at a maximum resolution of 5 MP (2560 × 1920). Real WDR (120 dB) and 3D DNR help maintain image quality in challenging lighting conditions. The camera features IR illumination with a range of up to 30 m and neutral-white LED illumination with a range of up to 30 m, providing clear video in low-light and nighttime conditions. Built-in hardware analytics include human detection, line-crossing detection, area monitoring, and vehicle detection.
For efficient video transmission, the camera supports H.265+, H.265, H.264, and MJPEG codecs with a maximum bitrate of 8 Mbps. A MicroSD card slot supports local recording with storage capacities of up to 512 GB. The camera can be powered via 802.3af PoE or 12 V DC. An IP66 and IK10-rated enclosure is designed for operation in temperatures from -40°C to +60°C and is equipped with TVS 4000 V protection. The camera supports a range of network protocols, including ONVIF.
