TR-D7121IR1 v7 1.9
صوتي
built-in microphone / built-in speakerمجال حركي واسع
real WDR (120 dB)دقة الكاميرات
1920x1080عامل الشكل
داخليةResolution
2MPمستشعر الصورة
1/2.8" CMOSمعدل البت (ميغا بايت / ثانية)
up to 8Mbpsمزود الطاقة
PoE (802.3af) / 12V DCعدسة
1.9الوزن الصافي
0.095 / 0.220الحساسية
0.005Lux (F1.6)التخزين المحلي
MicroSD up to 256GBIR
Yesمادة القضية
لدنالحماية من الصواعق
NoPower PoE
2.9Wأبعاد
129 x 99 x 60استهلاك الطاقة
DC: 2.0W PoE: 2.9Wدرجة حرارة العمل
-10°C … +50°Cالوضع النهاري/الليلي
الميكانيكي يرفلترواجهات الشبكة
RJ-45Field of view
H139°±5°, V74°±5°فيديو كمبرس
Н.265+ / Н.265 / H.264

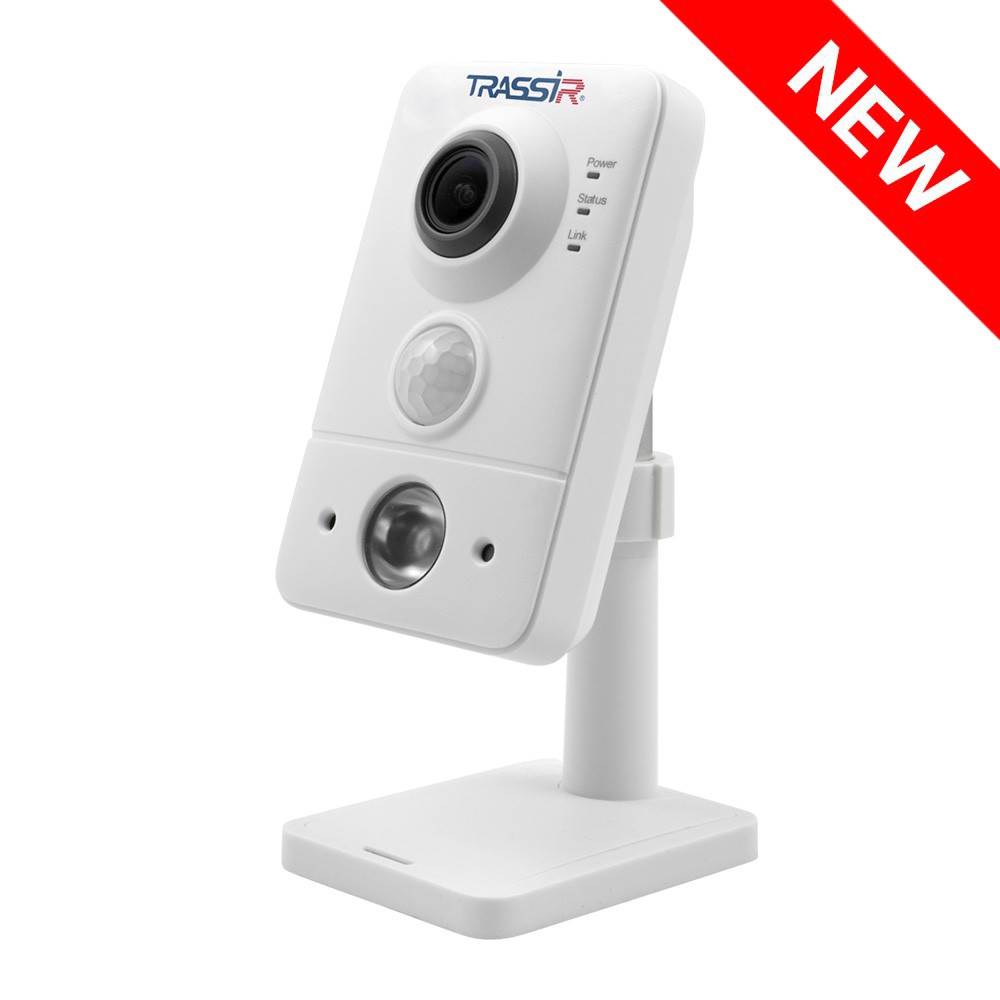

The TRASSIR TR-D7121IR1 v7 1.9 is a compact indoor 2 MP (1920×1080) IP camera designed for efficient video surveillance and two-way audio communication. It features IR illumination with a 10-meter range for night monitoring, a built-in microphone and speaker for two-way audio, and a PIR sensor for motion detection via thermal changes. The camera supports advanced analytics, including human motion detection, virtual line crossing, and zone intrusion detection.
Parameters:
- Detection of people, vehicles, line crossing, area entry and exit
- Real WDR 120 dB – improves image quality under high dynamic range lighting
- 3D DNR – spatial noise reduction for better clarity in low-light conditions
- Corridor mode – optimized for vertically oriented video
- 1/2.8" CMOS sensor with 0.005 lx minimum illumination
- Mechanical IR cut filter – blocks infrared light when ambient light is sufficient
- Video compression: H.265+, H.265, H.264
- Built-in microphone and speaker for two-way communication
- PIR sensor for thermal motion detection
- SD card slot supporting up to 256 GB
- Fixed 1.9 mm lens
- Horizontal viewing angle: 139°
- Vertical viewing angle: 74°
- Aperture: F/1.6
- Interfaces: RJ-45 network port, microSD slot (up to 256 GB), power connector
- Power supply: 12 V DC or PoE
- Maximum power consumption: 2 W
- Dimensions: 129 × 99 × 60 mm
- Weight: 95 g
- Operating temperature range: –10 °C to +50 °C
