TR-D6154IR10 v3 4.3-86

المواصفات الفنية

صوتي

audio in/out 1/1

مجال حركي واسع

real WDR (120 dB)

دقة الكاميرات

2560x1920

عامل الشكل

مقببة متحركة PTZ

Resolution

5MP

مستشعر الصورة

1/2.8" CMOS

معدل البت (ميغا بايت / ثانية)

up to 8Mbps

مزود الطاقة

PoE (802.3af) / 12V DC

عدسة

4.3-86

الوزن الصافي

2.1 / 2.4

الحساسية

0.002Лк (F1.78)

التخزين المحلي

MicroSD up to 256GB

حماية الدخول

IP66, IK10

IR

Yes

مادة القضية

Metal

الحماية من الصواعق

TVS 4000V

Power PoE

23W

أبعاد

Ø129 x 211

استهلاك الطاقة

PoE: 23W DC: 21W

درجة حرارة العمل

-40°C … +60°C

الوضع النهاري/الليلي

الميكانيكي يرفلتر

واجهات الشبكة

RJ-45

Field of view

H50.8°- 4.8°, V38.5°- 3.9°

Class PoE

802.3af/at

فيديو كمبرس

Н.265+ / Н.265 / H.264 / MJPEG
نظرة عامة

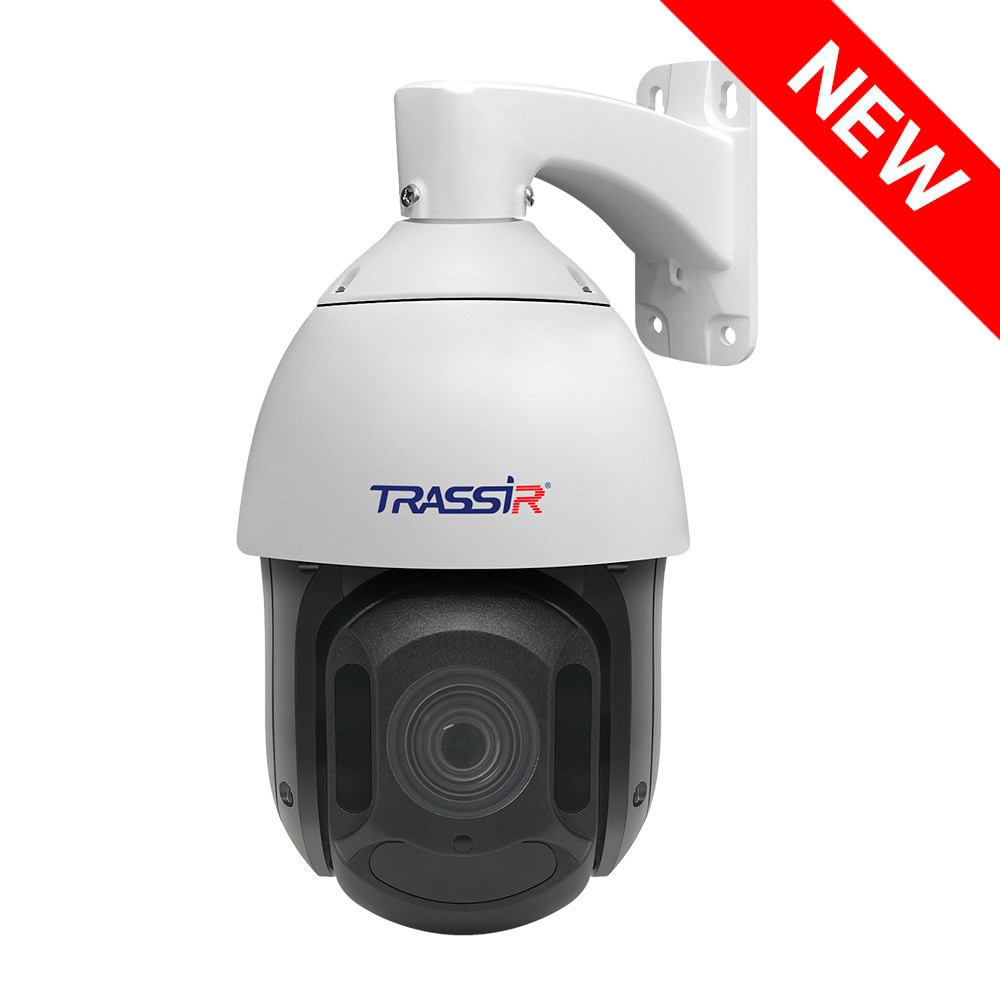

TRASSIR TR-D6154IR10 v3 (4.3-86 mm)

The 5 MP (2560×1920) rotating IP camera TRASSIR TR-D6154IR10 v3 4.3-86 is designed for outdoor use in all seasons. The housing meets the IP66 standard for dust and moisture protection, IK10 for mechanical impact resistance, and operates within a temperature range of –40 °C to +60 °C.


Functionality:
    • Pan range: 0° to 360°, tilt range: –16° to 90°
    • Pan speed: 0.1°/s to 200.0°/s, preset speed: 0.1°/s to 200.0°/s
    • Tilt speed: 0.1°/s to 180.0°/s, preset speed: 0.1°/s to 180.0°/s
    • 3D DNR – spatial noise reduction
    • BLC – software backlight correction
    • People detection, line crossing, and area control
    • IR illumination with a range of 100 m
    • Compression: H.265+, H.265, H.264
    • Day/night mode with a mechanical IR filter that blocks infrared rays in sufficient light
    • ROI – four fixed regions of interest
    • MicroSD card slot supporting up to 256 GB

Specifications:

The TR-D6154IR10 v3 4.3-86 features a 1/2.8" CMOS sensor with a sensitivity of 0.002 lux. It is equipped with a motorized lens with a focal length range of 4.3 to 86 mm and an aperture range of F/1.78 to F/2.86. The horizontal viewing angle ranges from 50.8° to 4.8°, and the vertical viewing angle from 38.5° to 3.9°. Autofocus is supported.

    • Interfaces: Network port, audio input/output, alarm input/output
    • Power supply: DC 12 V, PoE
    • Power consumption: 23 W
    • Dimensions: Ø129 × 211 mm
    • Weight: 2.1 kg
