TR-D3183ZIR5 v7 2.7-13.5
صوتي
audio in/out 1/1 / built-in microphoneمجال حركي واسع
real WDR (120 dB)دقة الكاميرات
3840x2160عامل الشكل
مقببةResolution
8MPدقة إخراج الفيديو القصوى
3840x2160مستشعر الصورة
1/2.7" CMOSمعدل البت (ميغا بايت / ثانية)
up to 16Mbpsمزود الطاقة
PoE (802.3af) / 12V DCعدسة
2.7 - 13.5الوزن الصافي
0.820 / 1.020الحساسية
0.006Lux (F1.6)التخزين المحلي
MicroSD up to 512GBحماية الدخول
IP67IR
Yesمادة القضية
Metalالحماية من الصواعق
TVS 2000VPower PoE
8.3Wأبعاد
Ø142.2 x 116.5استهلاك الطاقة
DC: 7W PoE: 8.3Wدرجة حرارة العمل
-40°C … +60°Cالوضع النهاري/الليلي
الميكانيكي يرفلترField of view
H101°-32°, V53°-18°Class PoE
802.3af/atفيديو كمبرس
Н.265+ / Н.265 / H.264+ / H.264

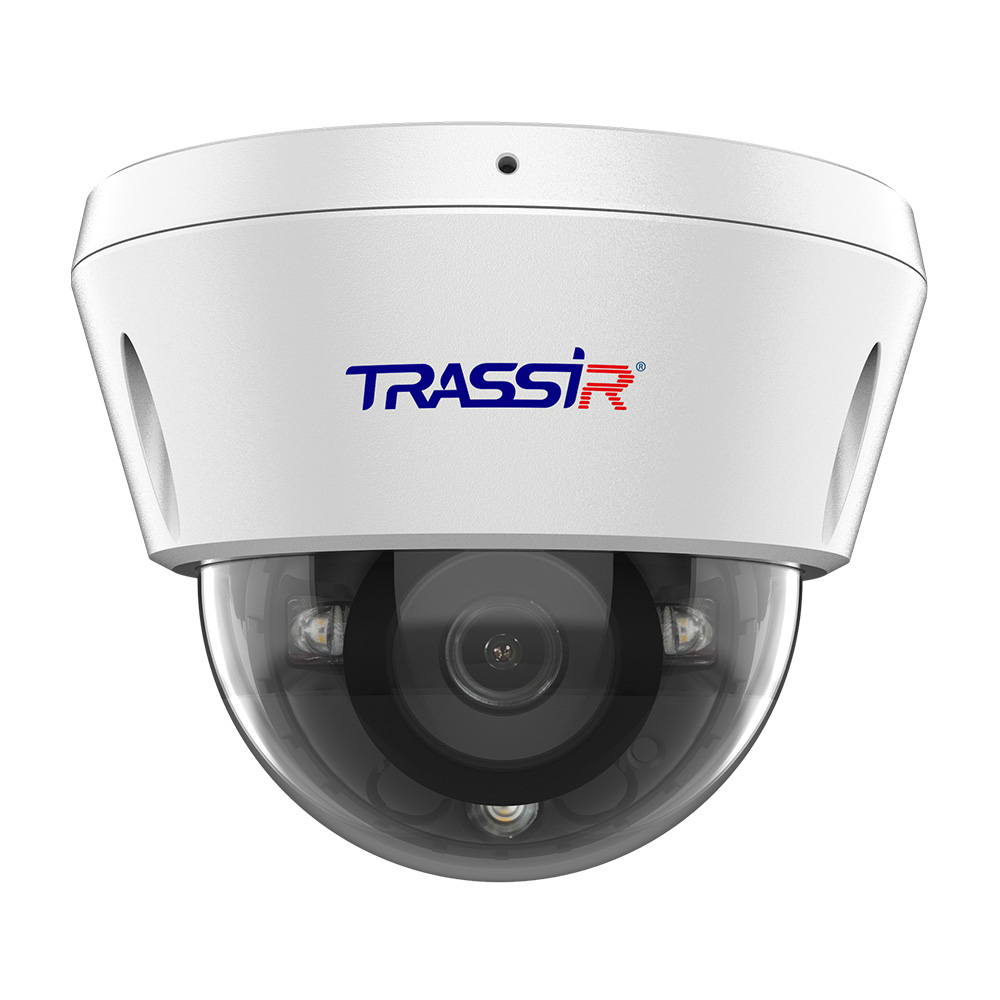

TRASSIR TR-D3183ZIR5 v7 2.7–13.5 is a dome camera with a motorized lens designed for 24/7 outdoor video surveillance. Equipped with a 1/2.7" CMOS sensor, the camera delivers detailed images at a maximum resolution of 8 MP (3840 × 2160). The 2.7–13.5 mm motorized varifocal lens allows the focal length and focus to be adjusted to suit the desired viewing distance and monitoring area.
120 dB WDR and 3D DNR help maintain high-quality video in challenging lighting conditions, while the mechanical IR filter and sensitivity of 0.006 lux (F1.6) enhance low-light and nighttime surveillance. IR illumination reaches up to 50 m. Built-in analytics include line-crossing detection, area monitoring, and smart motion detection with object-type filtering.
The camera supports three streams and H.265+, H.265, H.264+, and H.264 video codecs, with a maximum bitrate of 16 Mbps. A HotSwap-enabled MicroSD card slot supports local storage capacities of up to 512 GB. Two-way audio communication is supported via the built-in microphone and line-in/line-out interfaces.
The camera's metal enclosure, IP67 and IK10 protection ratings, operating temperature range of -40°C to +60°C, and TVS 2000 V lightning protection ensure reliable operation in demanding outdoor environments. Power can be supplied via 12 V DC or PoE (802.3af). ONVIF and other network protocols enable integration with the TRASSIR system and third-party solutions.
