TR-D2251WDIR4 v3 1.9
المواصفات الفنية
صوتي
audio in/out 1/1 / built-in microphoneمجال حركي واسع
real WDR (120 dB)دقة الكاميرات
2592x1920عامل الشكل
اسطوانيةResolution
5MPمستشعر الصورة
1/2.8" CMOSمعدل البت (ميغا بايت / ثانية)
up to 8Mbpsمزود الطاقة
PoE (802.3af) / 12V DCعدسة
1.9الوزن الصافي
0.460 / 0.565الحساسية
0.003Lux (F2.6)التخزين المحلي
MicroSD up to 512GBحماية الدخول
IP67IR
Yesمادة القضية
Metalالحماية من الصواعق
TVS 4000VPower PoE
6.9Wأبعاد
184.7 x 66.5 x 63.05استهلاك الطاقة
DC: 3.2W PoE: 6.9Wدرجة حرارة العمل
-40°C … +60°Cالوضع النهاري/الليلي
الميكانيكي يرفلترواجهات الشبكة
RJ-45Field of view
H110°±5°, V80°±5°Class PoE
802.3af/atفيديو كمبرس
Н.265+ / Н.265 / H.264نظرة عامة

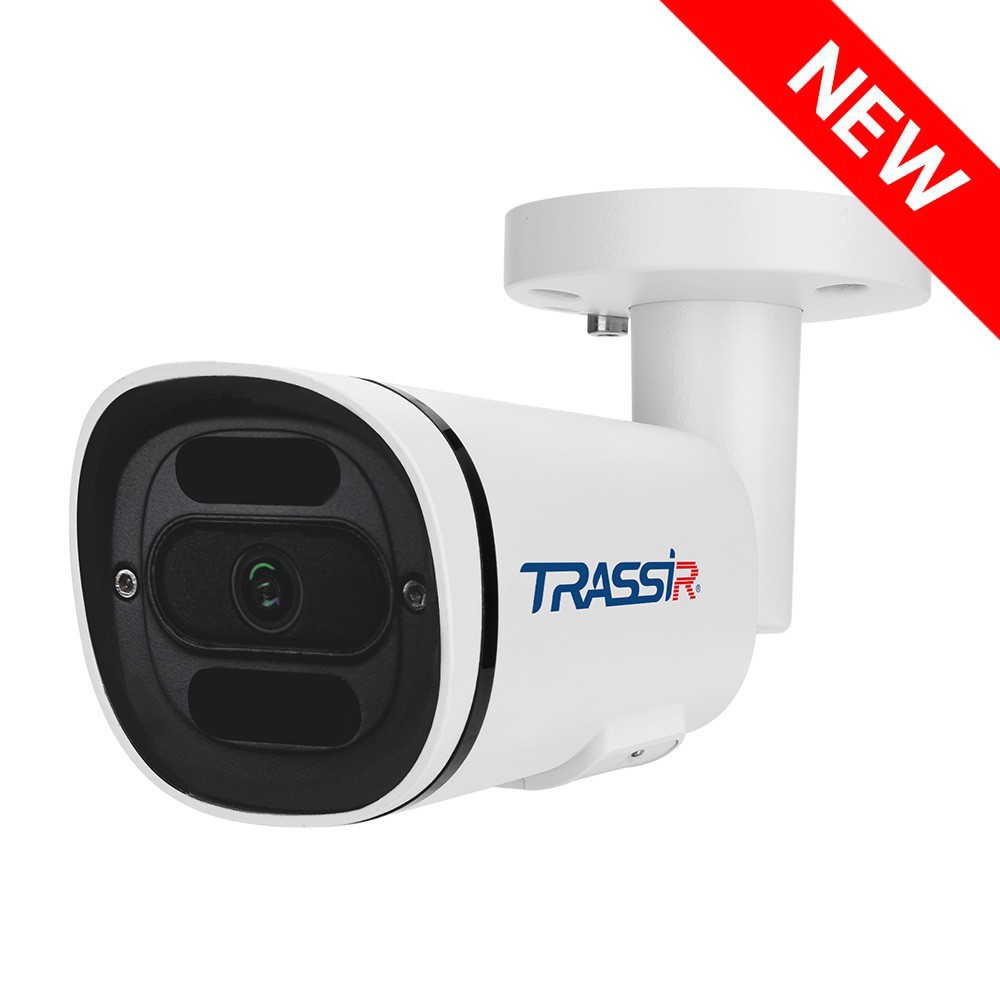

TRASSIR TR-D2251WDIR4 v3 (1.9 mm)
Functionality:
Main specifications:
TRASSIR TR-D2251WDIR4 v3 1.9 5 MP (2592×1920) IP Camera is designed for outdoor use in all seasons. Its robust housing provides protection against dust and moisture (IP67), operates in extreme temperatures (-40 °C to +60 °C), and includes lightning protection (TVS 4000). The integrated IR illumination covers distances of up to 40 m.
Functionality:
- Face detection, motion detection, people detection, line crossing, area intrusion, loitering, vehicle detection, people counting
- WDR 120 dB: Reduces the impact of high-contrast lighting
- 3D DNR: Spatial noise reduction
- Corridor mode: Optimized for vertically oriented scenes
- Defog: Enhances contrast to reduce the effects of fog and smoke
- BLC: Backlight compensation
- Video compression: H.265+, H.265, H.264
- Main stream: 25–30 fps at 2592×1920 resolution
Main specifications:
- 1/2.8-inch CMOS sensor with 0.003 lux sensitivity
- Day/night mode with ICR: blocks IR light in daylight for accurate colors; mechanically shifts in darkness to improve sensitivity
- Bitrate: 8 Mbps
- Fixed lens: 1.9 mm focal length, horizontal FOV 110° ±5°, vertical FOV 80° ±5°, aperture F/2.6
- RJ-45 network port, built-in microphone
- MicroSD slot supporting up to 512 GB
- Power: DC 12 V, PoE
- Maximum power consumption: 6.9 W
- Dimensions: 184.7 × 66.5 × 63.05 mm
- Weight: 460 g
