TR-D2121IR3 v7 3.6
المواصفات الفنية
صوتي
audio in/out 1/1 / built-in microphoneمجال حركي واسع
real WDR (120 dB)دقة الكاميرات
1920x1080عامل الشكل
اسطوانيةResolution
2MPمستشعر الصورة
1/2.8" CMOSمعدل البت (ميغا بايت / ثانية)
up to 8Mbpsمزود الطاقة
PoE (802.3af) / 12V DCعدسة
3.6الوزن الصافي
0.460 / 0.565الحساسية
0.005Lux (F1.6)التخزين المحلي
MicroSD up to 256GBحماية الدخول
IP67IR
Yesمادة القضية
Metalالحماية من الصواعق
TVS 4000VPower PoE
5.6Wأبعاد
184.7 x 66.5 x 63.05استهلاك الطاقة
DC: 3.8W PoE: 5.6Wدرجة حرارة العمل
-40°C … +60°Cالوضع النهاري/الليلي
الميكانيكي يرفلترواجهات الشبكة
RJ-45Field of view
H88°±5°, V48°±5°نظرة عامة

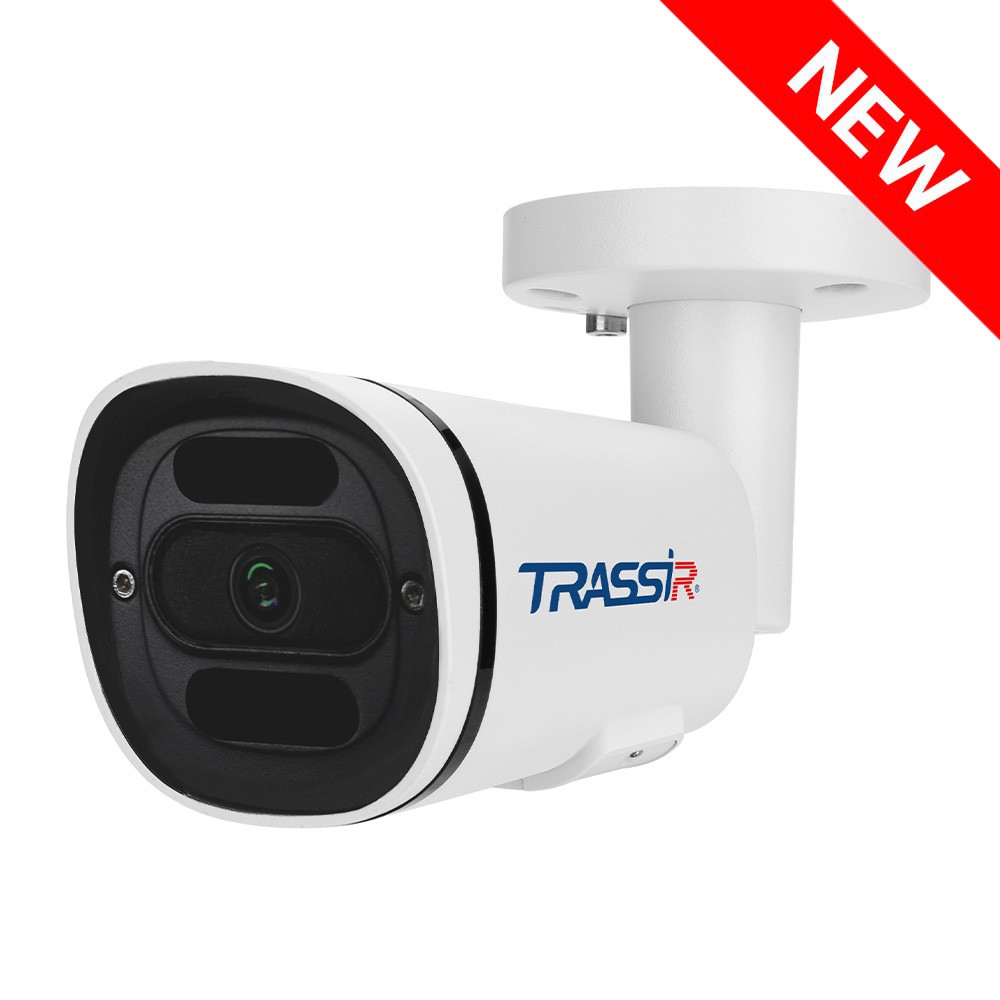

TRASSIR TR-D2121IR3 v7 (3.6 mm)
Parameters:
The TRASSIR TR-D2121IR3 v7 3.6 is a 2 MP (2560×1920) IP camera designed for outdoor use in high-access areas, functioning reliably in any season, day or night. Its durable metal housing is rated IP67 for protection against dust and moisture. The camera operates in extreme temperatures ranging from -40 °C to +60 °C and includes TVS 4000 V lightning protection. Integrated IR illumination provides visibility up to 35 meters in low-light conditions.
Parameters:
- Blackface IR illumination technology
- Detection capabilities: people, vehicles, line crossing, area entry and exit
- Real WDR 120 dB – improves image quality in high-contrast lighting conditions
- 3D DNR – spatial noise reduction for enhanced clarity
- Corridor mode – optimized for vertically oriented scenes
- 1/2.8" CMOS sensor with 0.005 lx minimum illumination
- Fixed 3.6 mm lens with 88° horizontal and 48° vertical field of view, F/1.6 aperture
- Mechanical IR cut filter – blocks infrared light in adequate lighting conditions
- Video compression formats: H.265+, H.265, H.264
- Built-in microphone
- SD card slot supporting up to 256 GB (hot-swappable)
- Interfaces: network port, audio input, audio output, reset button
- Power supply: DC 12 V or PoE
- Maximum power consumption: 3.8 W
- Dimensions: Ø184.7 × 66.5 × 63.05 mm
- Weight: 460 g
